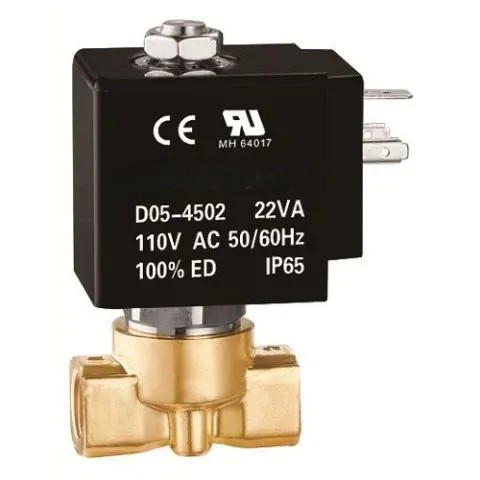

UL certified 2-Way Direct Acting Solenoid Valve
UL certified 2-Way Direct Acting Solenoid Valve - Image 2

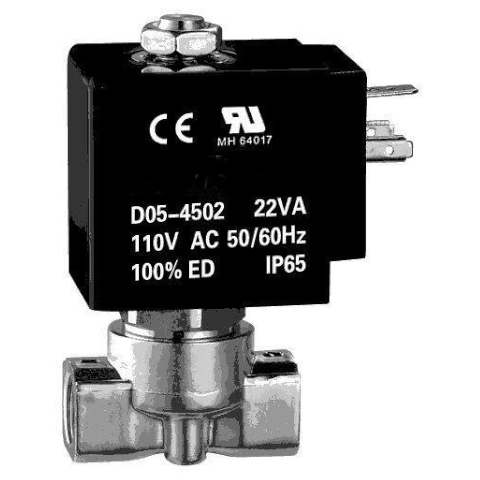

UL certified 2-Way Direct Acting Solenoid Valve - Image 3
General Purpose 2-Way Solenoids

UL certified 2-Way Direct Acting Solenoid Valve

UL certified

Available in:
Interface size(Port Size): 1/8″, 1/4″, 3/8″
Orifice size: DN2mm, DN2.5mm, DN3mm, DN4mm, DN5mm, DN6mm
Valve body material: brass, SS316
Sealing material: NBR, EPDM, VITON, VMQ
Working voltage: AC220V, AC240V, AC110V, AC120V, AC24V; DC24V, DC12V

Add to quote

Working medium: water, liquid, air, oil(<20cst)
Working pressure: 0~20bar (details in specification)
Ambient temperature: -10~55°C
Working type: direct acting
Medium temperature: -20~130°C Sealing material: NBR(-10~80°C)
Valve body material: brass, SS316
Interface: G thread, NPT thread
Working voltage: AC220V, AC240V, AC110V,AC120V,AC24V; DC24V, DC12V
Options: sealing material: EPDM(-20~130°C),VITON(-15~120°C), VMQ(-15~130°C)

Voltage

110V/120V AC, 220V/240V AC, 24V AC, 12V DC, 24 VDC
Port Size

1/8" NPT, 1/4" NPT, 3/8" NPT
Function

Normally Closed, Normally Open
