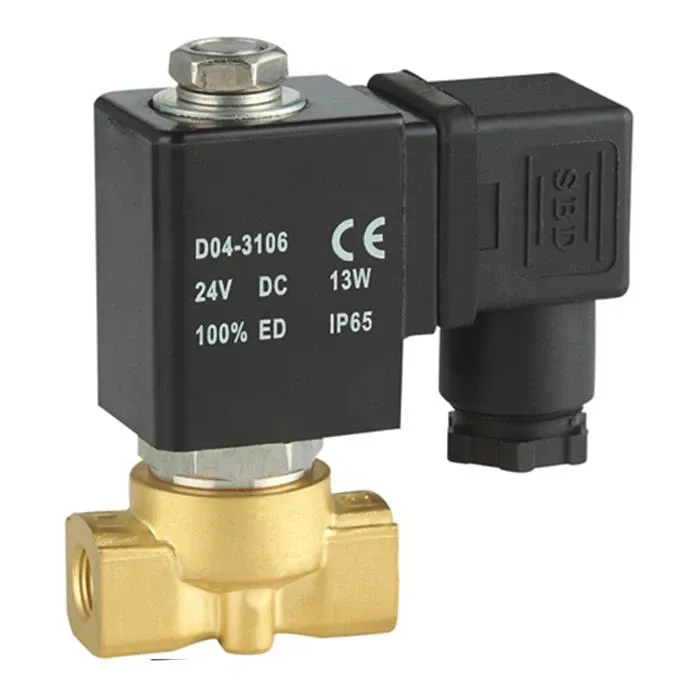

2-Way, Direct Acting Solenoid Valve

Interface size: 1/8＂～3/8＂
Orifice size: DN1.5～4mm
Working pressure: 0～15bar

Add to quote

  • Working medium: water, liquid, air, light oil (viscosity < 20cst)

  • Ambient temperature: -20°C ~ +65°C

  • Medium temperature: -10°C ~ 80°C (NBR sealing)

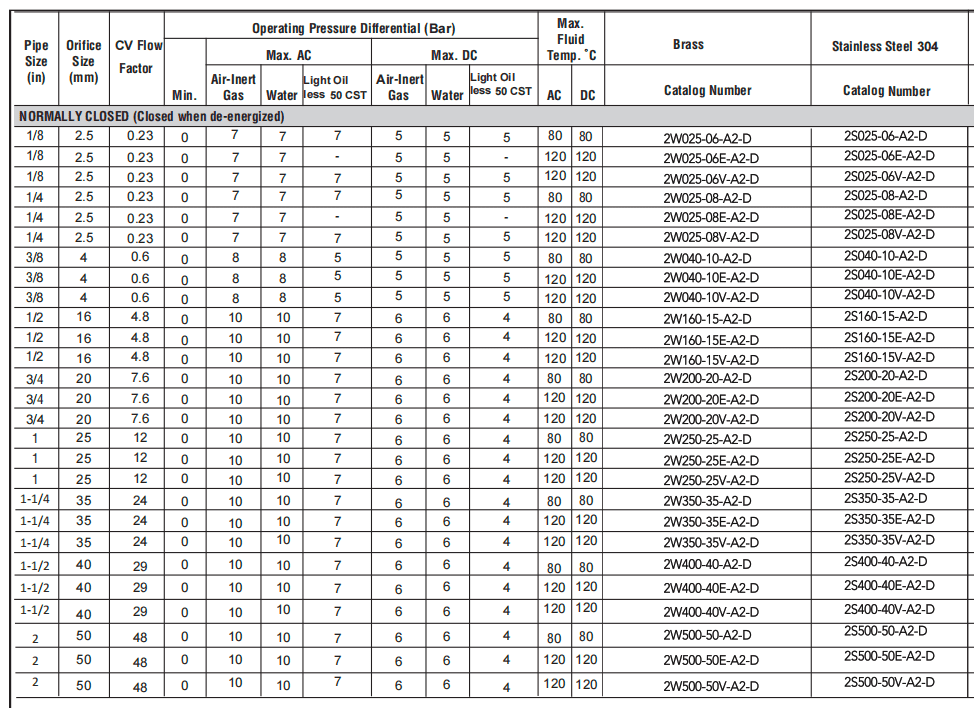

  • Working pressure: 0 ~ 12bar (details see specification table)

  • Working type: direct acting (NC/NO)

  • Valvebody material: Brass (HРb59-1A), SS316

  • Sealing material: NBR (-10°C ~ 80°C)

  • Interface: G thread, NPT thread

  • Working voltage: AC220-240V, AC110V 50/60Hz, DC24V, DC12V

  • Options:

    • ES low temp coil: (AC220V Start 130VA, hold 6VA, DC24V Start 24W, hold 4W) IP65

    • Ex encapsulated explosion-proof coil: (AC220V Start 90VA, hold 7VA, DC24V Start 55W, hold 5W) IP65

    • FS waterproof coil: IP68

Voltage

110V/120V AC, 220V/240V AC, 24V AC, 12 VDC, 24 VDC
Port Size

1/4" NPT 0.25", 3/8" NPT 0.37", 1/2" NPT 0.5", 3/4" NPT 0.75", 1" NPT, 1-1/4" NPT 1.25", 1-1/2" NPT 1.5", 2" NPT
Function

Normally Closed, Normally Open
