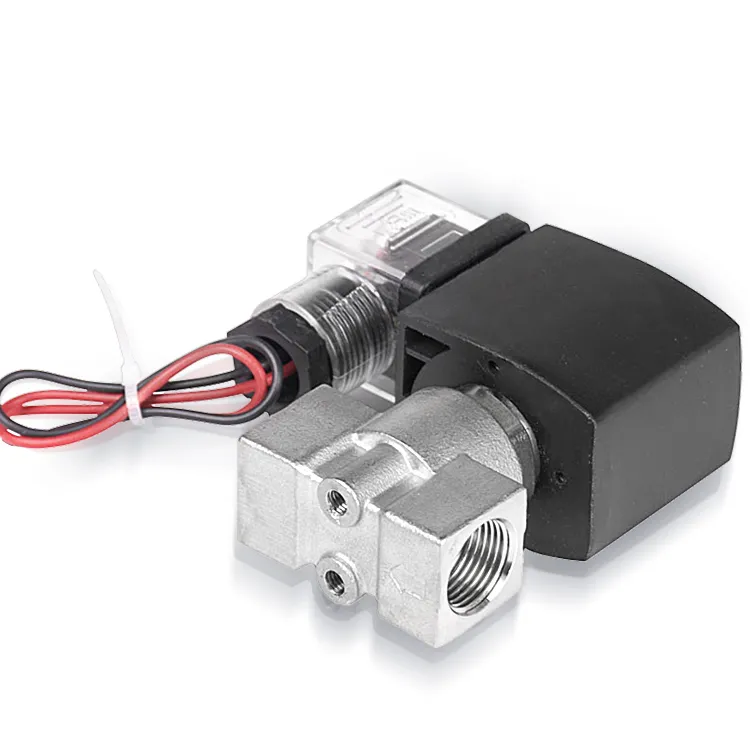

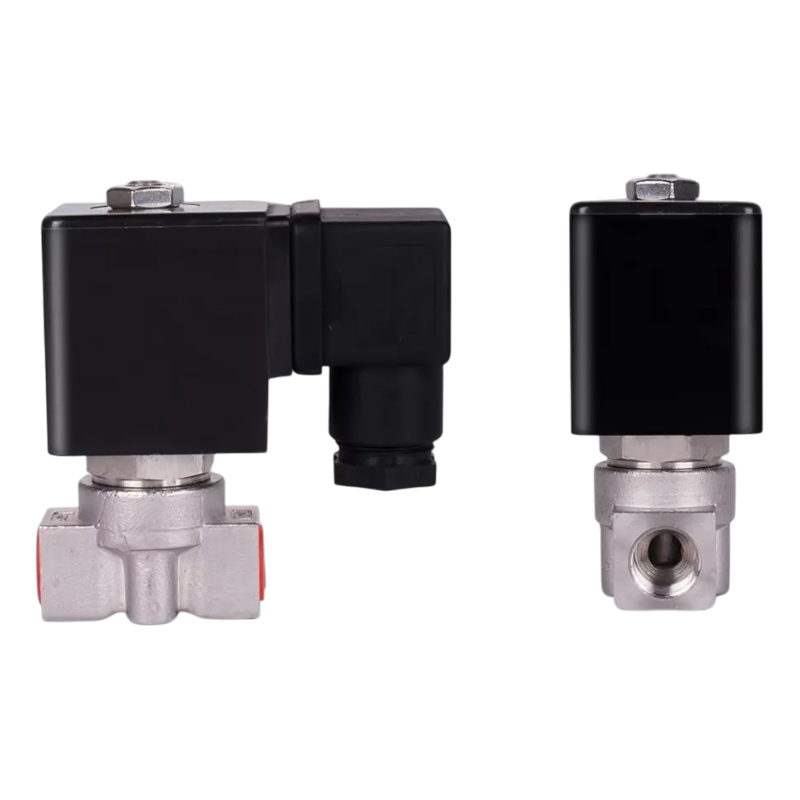

High-Pressure Burner Solenoid Valve (1/8″, 3/8″) | 25 Bar
High-Pressure Burner Solenoid Valve (1/8″, 3/8″) | 25 Bar - Image 2
High-Pressure Burner Solenoid Valve (1/8″, 3/8″) | 25 Bar - Image 3
High-Pressure Burner Solenoid Valve (1/8″, 3/8″) | 25 Bar - Image 4

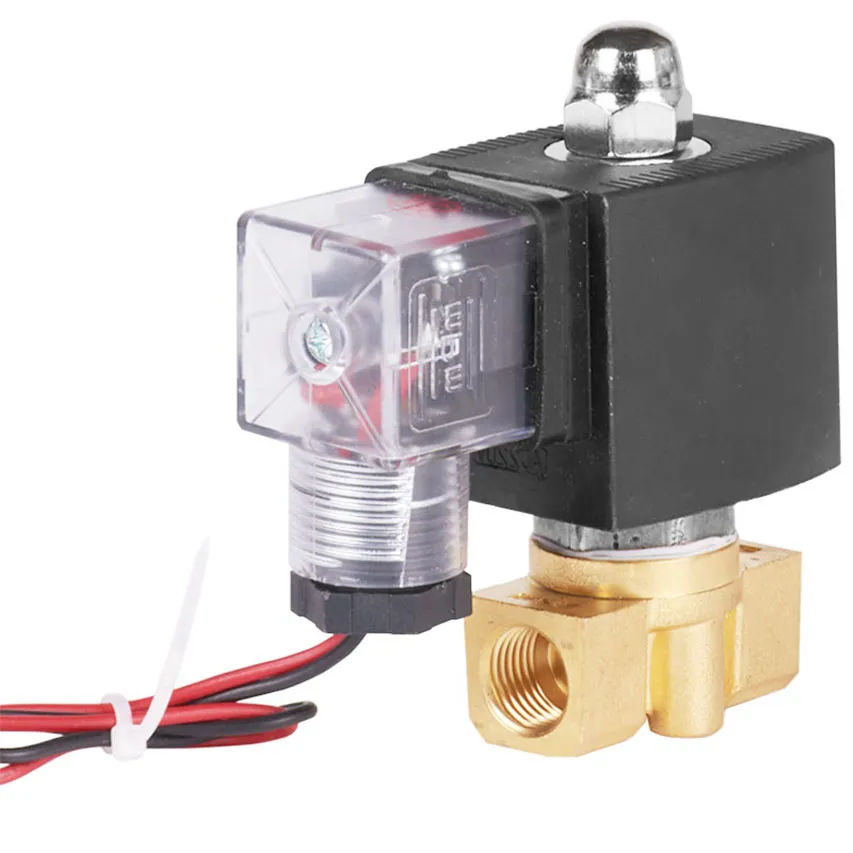

Brass Solenoid Valve

High-Pressure Burner Solenoid Valve (1/8″, 3/8″) | 25 Bar

1/8″ to 3/8″ (DN6-DN10) G/NPT Threaded Solenoid Valve. Optimized for burner systems, water, and gas applications. Normally Closed (NC).

  • Features: Ultra-compact & Space-saving. Specialized for high-pressure fuel injection and gas lines up to 25 Bar. Rapid-response direct-acting structure with a rugged block-style body.

  • Parameters: -10°C to 80°C (14°F to 176°F) | 0 – 25 Bar (0 – 362 PSI) | Brass or Stainless Steel SS304 Body.

  • Applications: Compact industrial burners, medical equipment, fuel atomization, and high-pressure micro-fluid control.

Add to quote

The Burner Solenoid Valve is a high-performance miniature solenoid valve engineered for precision control in space-constrained industrial environments. Despite its compact footprint, it handles operating pressures up to 25 Bar (362 PSI), making it a powerful solution for high-pressure burner fuel delivery, gas analysis, and liquid automation. Its robust block-style body—available in brass or SS304—and Class H insulated coil ensure long-cycle durability and rapid switching speeds required for modern automated systems. The valve supports multiple thread standards and can be customized with VITON or EPDM seals for chemical compatibility.

Technical Specifications

  • Body Material: Brass / Stainless Steel SS304

  • Seal Material: NBR (Standard); Optional VITON / EPDM

  • Operation: Direct-Acting / Pilot-Operated (Normally Closed)

  • Pressure Range: 0 – 25 Bar / 0 – 2.5 MPa (0 – 362 PSI)

  • Temperature Range: -10°C to 80°C (14°F to 176°F)

  • Interface: G / NPT / Rc Thread (1/8″, 1/4″, 3/8″)

  • Voltage Options: AC220V / AC110V / DC24V / DC12V

  • Protection Class: IP65

  • Insulation: Class H

  • Certification: CE

Voltage

220V AC, 110V AC, 24V DC, 12V DC
Port Size

1/8", 3/4", 3/8"
Body Material

Brass, SS304
