SW Series Integrated Mixed Manifold with D-sub Connector (5/2, 5/3 Way)
SW Series Integrated Mixed Manifold with D-sub Connector (5/2, 5/3 Way) - Image 2
Pneumatic Control

SW Series Integrated Mixed Manifold with D-sub Connector (5/2, 5/3 Way)

Plug-in Mixed Solenoid Valve Manifold | D-sub Multi-pin Connection | 4 to 24 Stations | 1/8″ – 1/4″ Port | 1-Second Maintenance | CE Certified

  • Alternative: Premium industrial replacement for SMC SY Series, Festo VTUG, and Airtac 6V.

  • Mixed Logic Configuration: Supports flexible combinations of 5/2 single/double control and 5/3 center closed/exhaust/pressure valves on a single block.

  • Smart D-sub Wiring: Single multi-pin D-sub connector replaces complex individual wiring | Saves 80% labor cost.

  • 1-Second Maintenance: Modular plug-in design for instant “plug out & in” valve replacement without disturbing air lines.

  • Cost-Efficient Design: Integrated common air inlet reduces the number of tubes and fittings required.

  • Visual Diagnostics: Dedicated LED indicator for each station for rapid status checks.

Add to quote
SKU: SV-SW Category: Tag:

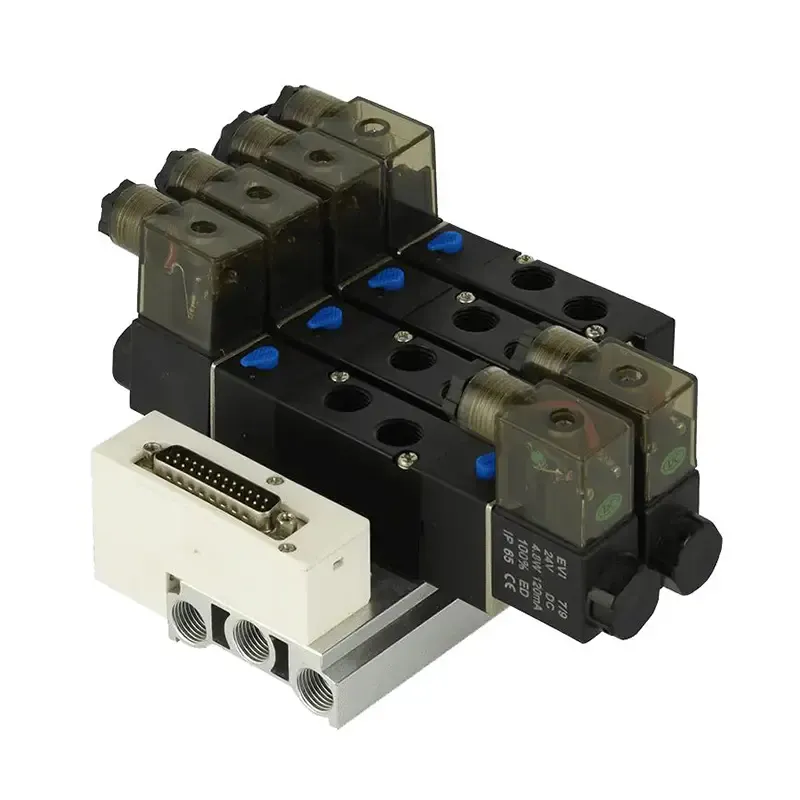

The SW Series is a highly versatile pneumatic control solution designed for systems requiring varied actuator logic. Its standout feature is the Mixed Manifold capability, allowing engineers to combine different valve functions—such as 5/2 way and 5/3 way (V4210, V4220, V4230)—on the same aluminum base to meet specific application needs.

By utilizing a centralized D-sub multi-pin interface, the SW series streamlines electrical installation, making it the ideal choice for high-density control cabinets. The plug-in architecture ensures that maintenance is near-instantaneous; a single valve can be swapped in seconds, minimizing production downtime. It is widely used in packaging machinery, semiconductor equipment, and complex automated assembly lines.

  • Valve Functions: 5/2 Way (Single/Double) | 5/3 Way (Center Closed/Exhaust/Pressure)

  • Port Size: 1/8″ or 1/4″ (G / NPT Thread)

  • Working Medium: Compressed Air (40μm filtered)

  • Working Pressure: 0.15 – 0.8 MPa (21 – 114 PSI)

  • Max. Proof Pressure: 1.2 MPa (174 PSI)

  • Working Temperature: -5°C to 60°C (23°F to 140°F)

  • Max. Acting Frequency: 5 Cycles / Second

  • Voltage: DC24V (Standard for D-sub)

  • Protection: IP65 | Class F Insulation

  • Certification: CE





Pipe Connection (NPT/G)

1/8″, 1/4″
