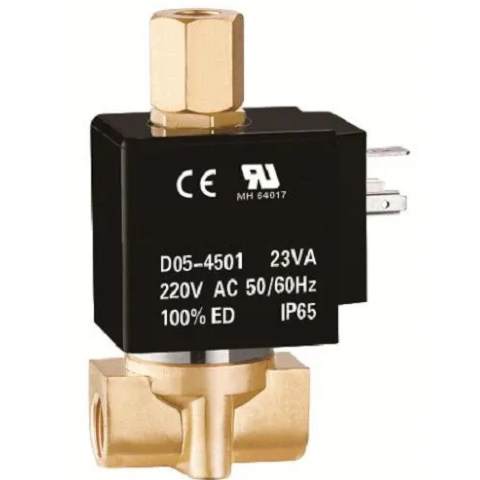

UL Certified 2-Position 3-Way Direct Acting Solenoid Valve
UL Certified 2-Position 3-Way Direct Acting Solenoid Valve - Image 2
General Purpose 3-Way Solenoids

UL Certified 2-Position 3-Way Direct Acting Solenoid Valve

UL certified

Available in:
Interface size(Port Size):1/8”, 1/4′
Orifice size: DN1.5mm, DN3mm
Valve body material: brass, SS316
Sealing material: NBR, EPDM, VITON
Working voltage: AC220V, AC110V, AC24V; DC24V, DC12V

Add to quote

Working medium: water, liquid, air, oil(<20cst)
Working pressure: 0.3~20bar (details in specification)
Ambient temperature: -10~55°C
Working type: direct acting (NC, NO)
Medium temperature: -20~130°C Sealing material: NBR(-10~80°C)
Valve body material: brass, SS316
Interface: G thread, NPT thread
Sealing material: NBR(-10~80°C)
Working voltage: AC220V, AC110V, AC24V; DC24V, DC12V
Options: sealing material: EPDM(-20~130°C),VITON(-15~120°C), VMQ(-15~130°C)

Voltage

110V/120V AC, 24V DC
Port Size

1/8" NPT, 1/4" NPT
Function

Normally Closed, Normally Open
