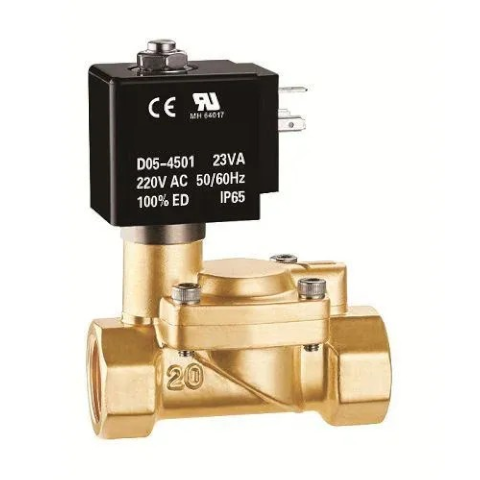

UL certified Pilot Operated Solenoid Valve
UL certified Pilot Operated Solenoid Valve - Image 2
General Purpose 2-Way Solenoids

UL certified Pilot Operated Solenoid Valve

UL certified

Available in:
Interface size(Port Size):1/2”, 3/4”, 1”, 1  1/4”, 1 1/2”, 2”, 3”
Orifice size: DN13mm, DN18mm, DN23mm, DN32mm, DN40mm,DN50mm, DN80mm
Valve body material: brass, SS304
Sealing material: NBR, EPDM, VITON, VMQ
Working voltage: AC220V, AC110V, AC24V; DC24V, DC12V

Add to quote

Working medium: water, liquid, air, oil(<20cst)
Working pressure: 0.3~20bar (details in specification)
Ambient temperature: -10~55°C
Working type: pilot operated (NC, NO)
Medium temperature: -20~130°C Sealing material: NBR(-10~80°C)
Valve body material: brass, SS304
Interface: G thread, NPT thread
Working voltage: AC220V, AC110V, AC24V; DC24V, DC12V
Options: sealing material: EPDM(-20~130°C),VITON(-15~120°C), VMQ(-15~130°C)

Voltage

110V/120V AC, 24V DC
Port Size

1/2'' NPT, 3/4'' NPT, 1'' NPT, 1 1/4'' NPT, 1 1/2'' NPT, 2'' NPT, 3'' NPT
Function

Normally Closed, Normally Open
