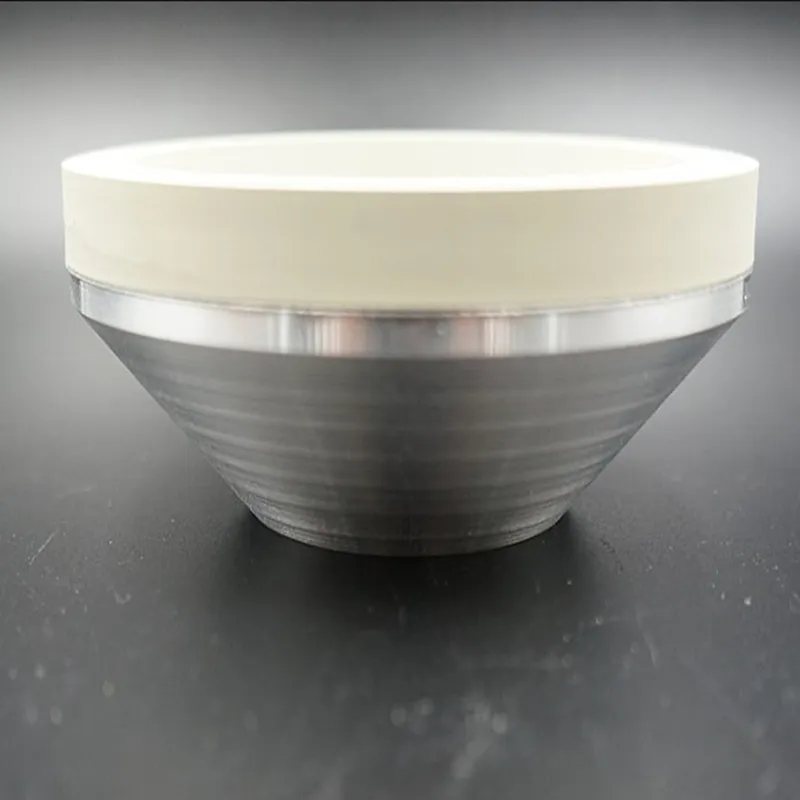

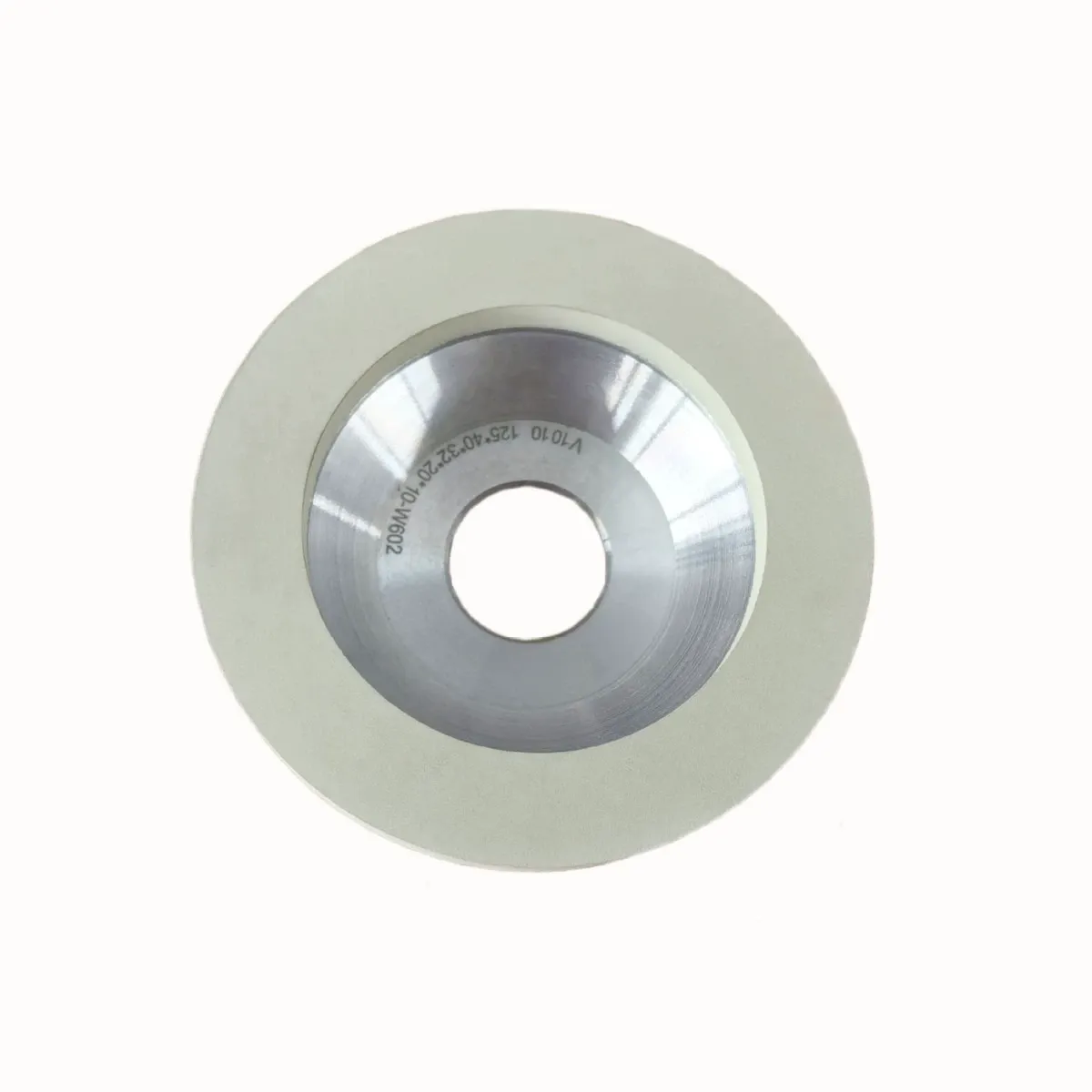

The VD-11A2 is an 11A2 bowl-profile vitrified bond diamond grinding wheel designed for precision grinding of PCD, PCBN, ceramic, and tungsten carbide cutting tools.

The bowl geometry with 45° inner face provides clearance for adjacent tool features during grinding, making it particularly well-suited for PCD insert edge preparation, PCBN tool sharpening, and CNC tool grinder applications. The vitrified bond delivers free-cutting action, excellent form retention, and easy dressing.

Add to quote
SKU: GW-VD-11A2 Category: Tag:

Specifications

Parameter Imperial Metric

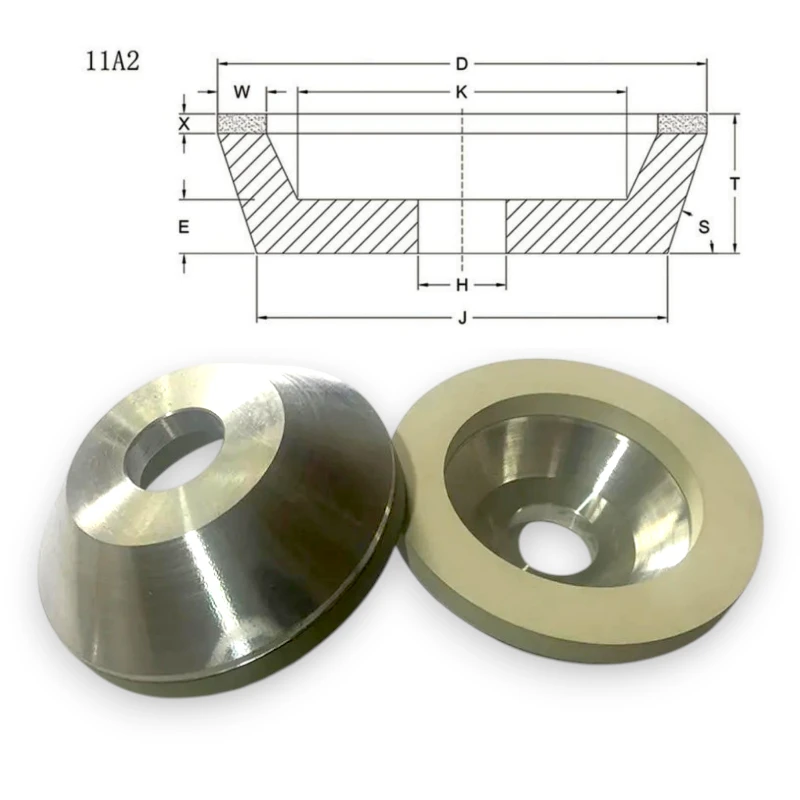

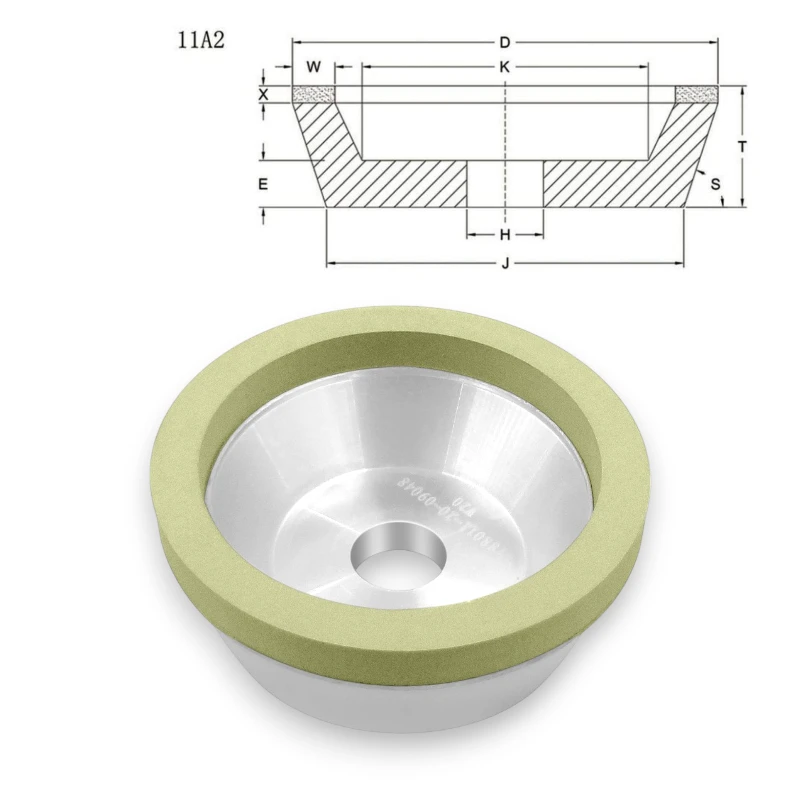

Shape / Form 11A2 (Bowl / Flaring Cup)
Abrasive Synthetic diamond
Bond type Vitrified
Core material Aluminium alloy
Outer diameter (D) 4″ – 6″ · Custom 100 – 150 mm · Custom
Bore diameter (H) 0.79″ – 1.57″ · Custom 20 – 40 mm · Custom
Overall height (T) 0.79″ – 1.57″ · Custom 20 – 40 mm · Custom
Abrasive face width (W) 0.12″ – 0.39″ · Custom 3 – 10 mm · Custom
Abrasive layer depth (X) 0.08″ – 0.39″ · Custom 2 – 10 mm · Custom
Grit / mesh W5 (~2500#) / W10 (~1200#) / W20 (~600#) / W28 (~400#) / W40 (~320#) · Custom — specify at order
Max. operating speed 4,000 rpm

Applications

Application Recommended Grit Notes
PCD insert edge grinding W10–W28 (~400#–1200#) 45° bowl face contacts PCD cutting edge; inner geometry clears insert body
PCBN tool sharpening W20–W40 (~320#–600#) Higher MRR than 6A2 cup; suitable for rough and semi-finish passes
Natural diamond & MCD tool grinding W5–W10 (~1200#–2500#) Ultra-fine grit for mirror-edge preparation on monocrystalline diamond tools
Carbide tool face grinding W20–W40 (~320#–600#) Bowl profile suits CNC tool grinder face grinding programs
Ceramic & CVD tool grinding W10–W20 (~600#–1200#) Vitrified bond minimises heat transfer to thermally sensitive CVD coatings

Ordering Information

SKU D × T × H × W × X (in) D × T × H × W × X (mm) Grit Unit Price
VD-11A2-100-40-40-10-10 4″ × 1.57″ × 1.57″ × 0.39″ × 0.39″ 100 × 40 × 40 × 10 × 10 Custom $180/pc (sample)
VD-11A2-100-20-40-5-10 4″ × 0.79″ × 1.57″ × 0.20″ × 0.39″ 100 × 20 × 40 × 5 × 10 Custom RFQ
VD-11A2-125-40-40-5-10 5″ × 1.57″ × 1.57″ × 0.20″ × 0.39″ 125 × 40 × 40 × 5 × 10 Custom RFQ
VD-11A2-150-40-40-3-10 6″ × 1.57″ × 1.57″ × 0.12″ × 0.39″ 150 × 40 × 40 × 3 × 10 Custom RFQ
VD-11A2-150-40-40-5-10 6″ × 1.57″ × 1.57″ × 0.20″ × 0.39″ 150 × 40 × 40 × 5 × 10 Custom RFQ
Custom Per drawing Custom RFQ within 24 h

MOQ: 1 piece  ·  Lead time: 7 business days · Custom: quoted on request  ·  Payment: 100% T/T in advance · PayPal · Credit card

To request a quote: tanya@zyindustrial.com  |  zyindustrial.com
