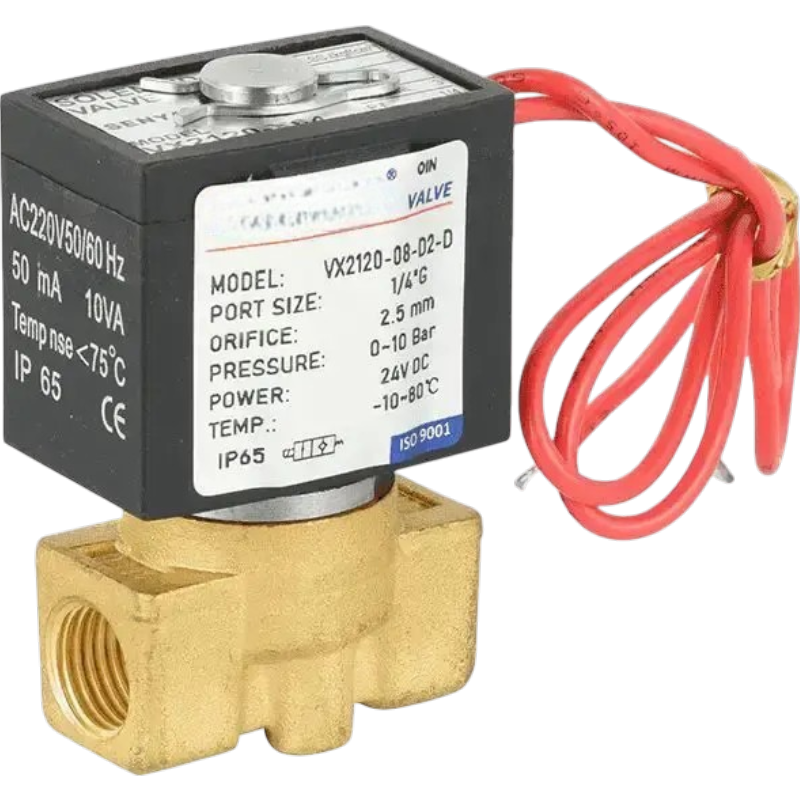

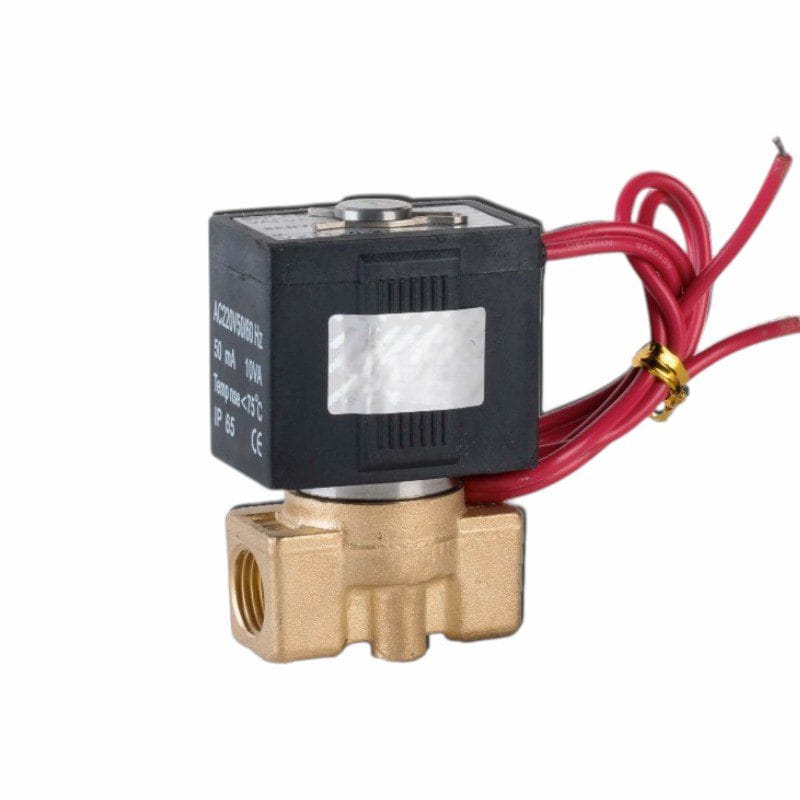

VX2120 Series High-Pressure Solenoid Valve – Brass/SS304 Body

1/8″ to 1/2″ G/NPT Threaded Solenoid Valve. Compact 2/2-way direct-acting design for air, gas, water, and oil. Normally Closed (NC).

  • High Pressure Options: Available in 10 Bar, 15 Bar, and 20 Bar configurations.

  • Wide Temperature Range: Reliable performance from -5°C up to 150°C.

  • Versatile Media: Suitable for diverse industrial fluids and pneumatic systems.

  • Space-Saving: Compact footprint for installation in limited working spaces.

Add to quote

The VX2120 Series is a versatile, industrial-grade solenoid valve designed for high-pressure precision. Built with a direct-acting mechanism, it offers rapid response times and reliable shut-off for various media including air, inert gas, water, and light oil. The rugged construction is specifically engineered to handle increased working pressures that standard valves cannot accommodate.

Available in high-quality Forged Brass or Stainless Steel (SUS304), the VX2120 utilizes premium Viton or NBR seals to maintain integrity across broad temperature fluctuations. With a choice between flying leads and DIN connector coils, this series is easily integrated into existing control systems for automation, textile machinery, and medium-pressure fluid lines.

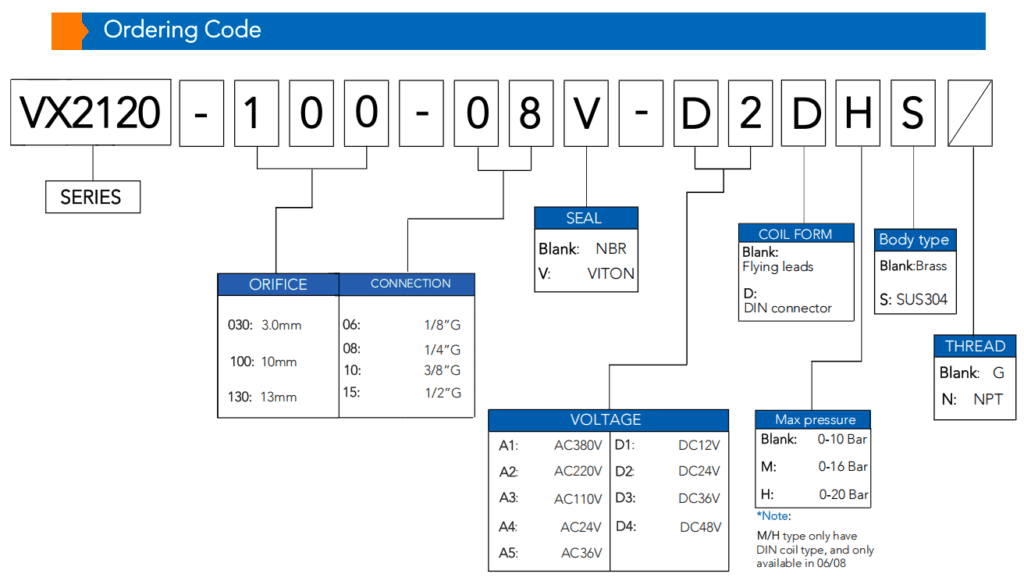

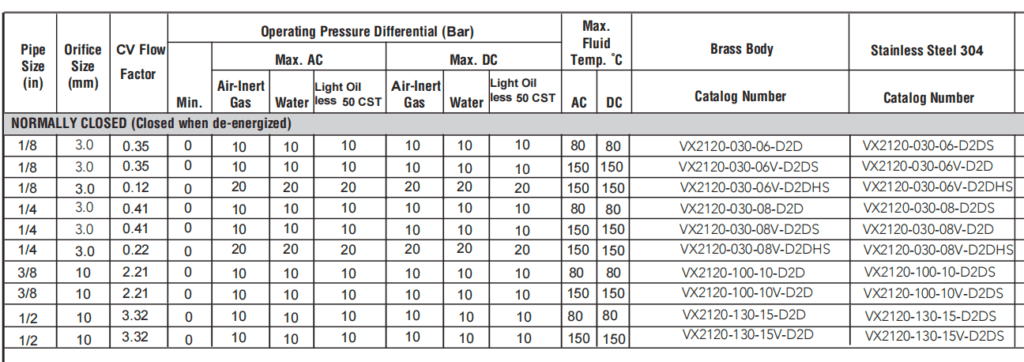

Technical Specifications

  • Body Material: Forged Brass / Stainless Steel 304

  • Seal Material: NBR (Standard) / VITON (High Temp)

  • Operation: Direct-Acting (Normally Closed)

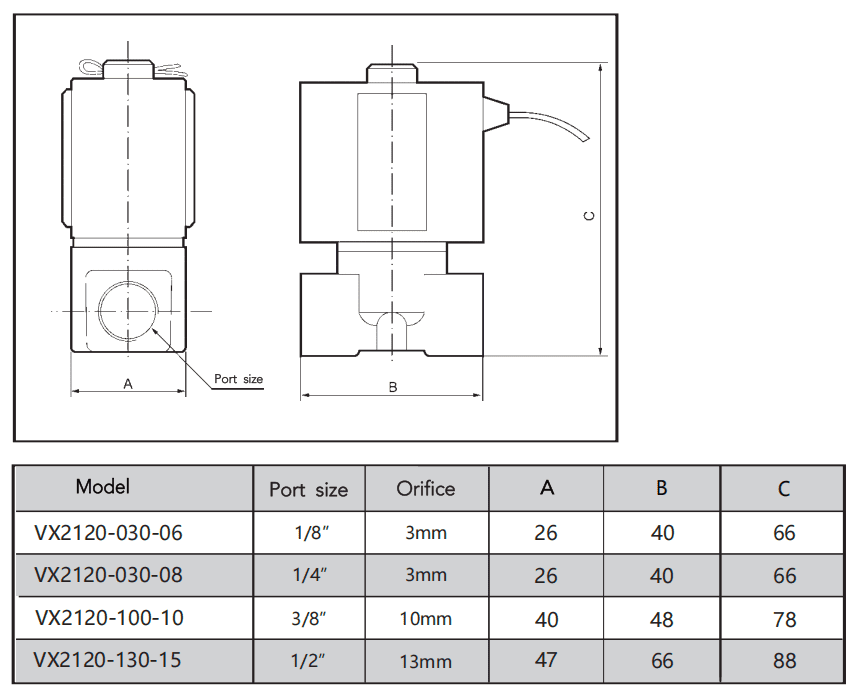

  • Orifice Size: 3mm / 10mm / 13mm

  • Port Size: 1/8″, 1/4″, 3/8″, 1/2″

  • Pressure Range: 0 – 2.0 MPa (0 – 20 Bar)

  • Temperature Range: -5°C to 150°C

  • Interface: G Thread / NPT Thread

  • Voltage Options: 380VAC / 220VAC / 110VAC / 24VDC / 12VDC

  • Wiring: Flying leads / DIN connector

  • Protection Class: IP65

  • Insulation: Class F

  • Certification: CE

Voltage

220V AC, 110V AC, 24V AC, 24V DC, 12V DC
Pipe Connection (NPT/G)

1/8″, 1/4″, 3/8″, 1/2″
Body Material

Brass, SUS 304
