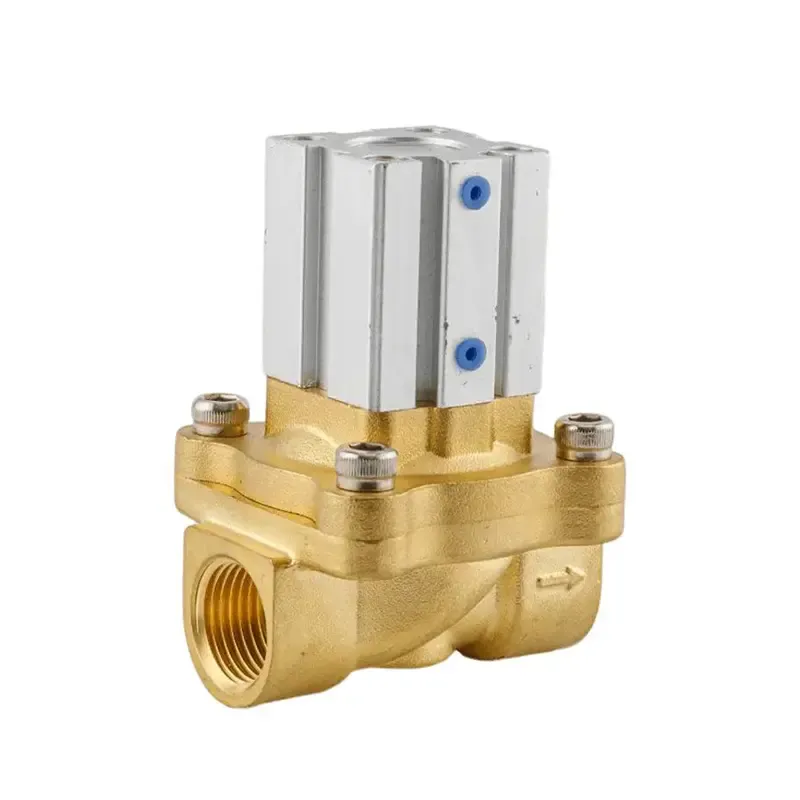

2Q Series Pneumatic Actuated Valve (Brass Body) – PTFE Seal

1/4″ to 2″ (DN8-DN50) G/NPT threaded 2/2 ways pneumatic control valve. Features a robust brass body with a compact plastic actuator. Available in Double Acting and Single Acting (NC/NO) configurations.

    • Intrinsically Safe: Compressed air control eliminates electrical spark risks. Ideal for explosive or hazardous atmospheres.

    • Space Efficient: Compact actuator design offers a 30-50% smaller footprint than conventional pneumatic valves.

    • High-End Sealing: High-performance PTFE seals and valve stem coating for leak-free operation from -5°C to 180°C.

    • Rapid Maintenance: Tool-free actuator replacement in under 1 minute. Modular design for easy service.

    • Flexible Logic: Available in Double Acting and Single Acting (Normally Closed) configurations.

Applications: Oil & gas, chemical processing, mining, food & medicine, and industrial washing systems.

Commonly used as an alternative to:

  • Standard angle seat valves where space is limited.

  • Burkert air-operated piston valves.

  • Heavy-duty solenoid valves in high-moisture environments.

Add to quote
SKU: SV-2Q Category:

The 2Q Pneumatic Control Valve is a robust and safety-engineered solution designed for reliable operation in hazardous and demanding industrial environments. Its intrinsically safe pneumatic actuation eliminates electrical spark risks, making it particularly suitable for flammable and explosive atmospheres where traditional electrically-operated valves would pose significant safety concerns. The valve incorporates high-performance PTFE sealing components that maintain their integrity in aggressive chemical environments, extreme temperatures, and other challenging operating conditions while ensuring long-term, leak-free performance.

Featuring a modular design, the 2Q valve allows for straightforward disassembly and maintenance using basic tools, with quick-access actuator and piston seal components that can be easily serviced or replaced without specialized equipment. The series offers flexible configuration options, including both double-acting and spring-return (single-acting) variants to accommodate different operational requirements and fail-safe scenarios. Its compact actuator design achieves a remarkable 30-50% size reduction compared to conventional pneumatic actuators of equivalent capacity, providing significant space savings in crowded control panels or equipment installations where real estate is limited.

The valve’s optimized airflow path and precision-machined internal components ensure responsive actuation and consistent performance across its full pressure range. The corrosion-resistant body materials and rugged construction make it suitable for long-term service in oil & gas, chemical processing, mining, and other industries where equipment reliability directly impacts safety and productivity. Available in multiple port sizes and with various mounting configurations, the 2Q series can be adapted to specific application needs while maintaining its signature combination of safety features, compact dimensions, and maintenance-friendly design.

Technical Specifications

  • Body Material: Brass

  • Seal Material: PTFE (Teflon)

  • Operation: Air-Pilot Actuated (DA / NC / NO)

  • Working Pressure: 0 – 0.7 MPa (0 – 7 Bar)

  • CV Value: 4.8 – 48

  • Medium Temperature: -10°C to 180°C

  • Port Sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″

  • Thread Type: G (Standard) / NPT

  • Certification: CE

Technical Support: Not sure which acting type (NC/NO/DA) fits your system? Contact our engineers for a quick model selection.

Pipe Connection (NPT/G)

3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
Working Type

Double Acting, Normally Closed (NC), Normally Open (NO)
