Q Series High-Frequency Solenoid Valves for Medical Instruments

1/4″ BSPP High-Frequency Solenoid Valve. Compact aluminum body design for rapid response and high-cycle pneumatic control. Available in 2/2-way and 3/2-way configurations.

  • High-Speed Switching: Reversing time < 40 ms for high-frequency industrial automation.

  • Extreme Durability: Tested for a life cycle > 3 million times.

  • Precision Control: Ideal for piloting heavy-capacity valves or controlling low-consumption actuators.

  • Versatile Mounting: Lightweight design can be mounted in any position.

  • Industrial Protection: Reliable operation from 0 to 0.8 MPa (0 to 116 PSI).

Applications: CNC machines; Pilot-operated valve manifolds; Industrial automation; Textile machinery.

Commonly used as an alternative to:

  • Small flow solenoid valves from Burkert

  • Compact valves from ASCO

  • Miniature pneumatic valves from SMC / Festo

Add to quote
SKU: SV-Q01 Categories: ,

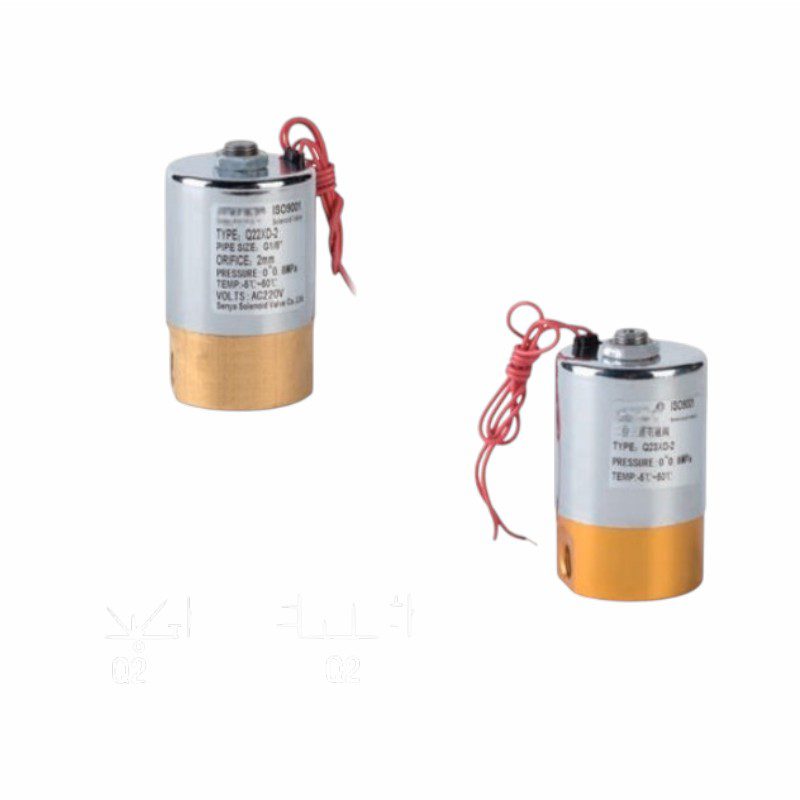

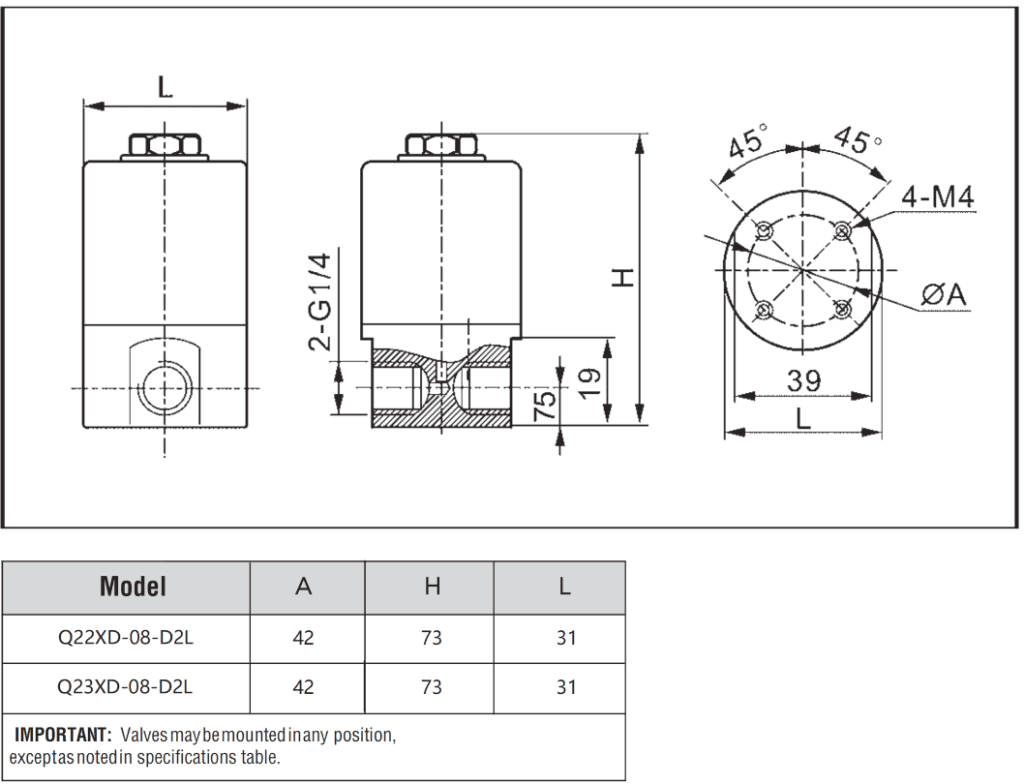

The Q Series (Q22XD / Q23XD) is a precision-engineered, direct-acting high-frequency solenoid valve. It features a lightweight aluminum body and is optimized for pneumatic systems requiring rapid actuation and long-term reliability.

The Q23XD (3/2-way) is primarily utilized as a pilot component for heavy-capacity reversing valves or to control small-bore actuators. The Q22XD (2/2-way) provides efficient on/off control for gas flow. With a response time of under 40ms and a mechanical life exceeding 3 million cycles, these valves are built for the rigorous demands of high-speed production lines.

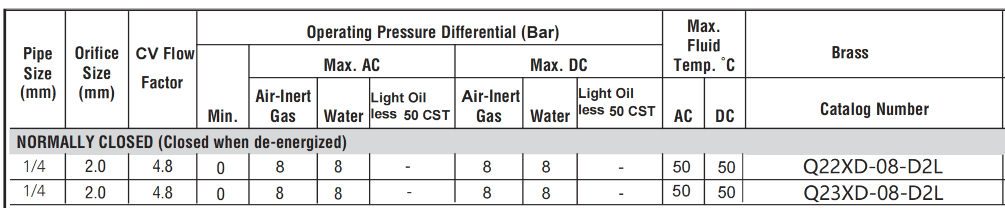

Technical Specifications

    • Body Material: Aluminum

    • Seal Material: NBR (Standard)

    • Operation: Direct-Acting

    • Pressure Range: 0 – 0.8 MPa (0 – 116 PSI)

    • Working Temperature: -5°C to 40°C (23°F to 104°F)

    • Flow Capacity: 4.8 CV

    • Interface: 1/4″ G (BSPP)/ Sub-plate type

    • Orifice Size: 2.0 mm

    • Certification: CE

  • Not sure if this fits your system? Send us your current model or application — we will help you match the right solution.



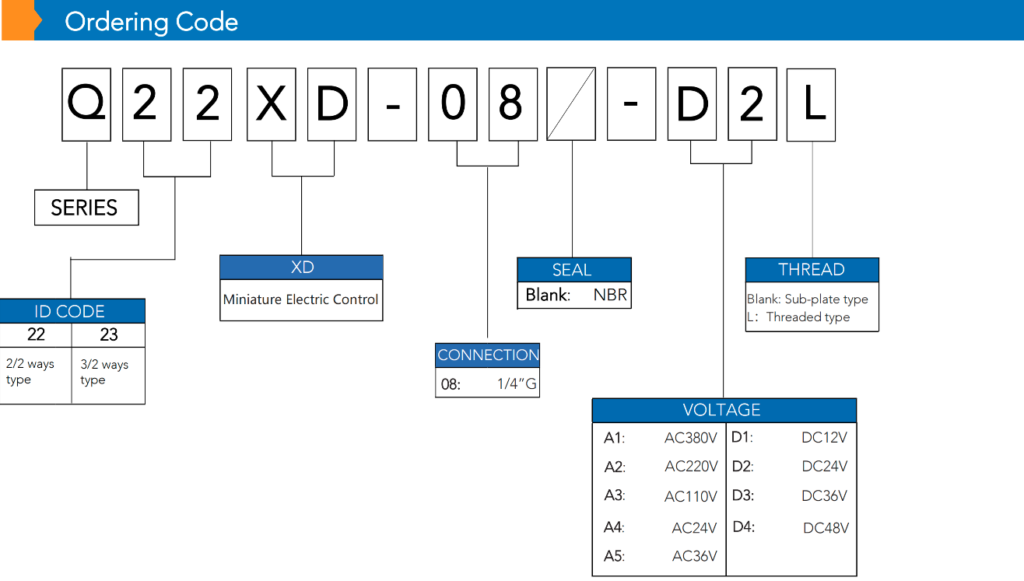

Type

Q22XD(2/2 ways)), Q23XD(2/3 ways)
Voltage

220V AC, 110V AC, 24V AC, 24V DC, 12V DC
