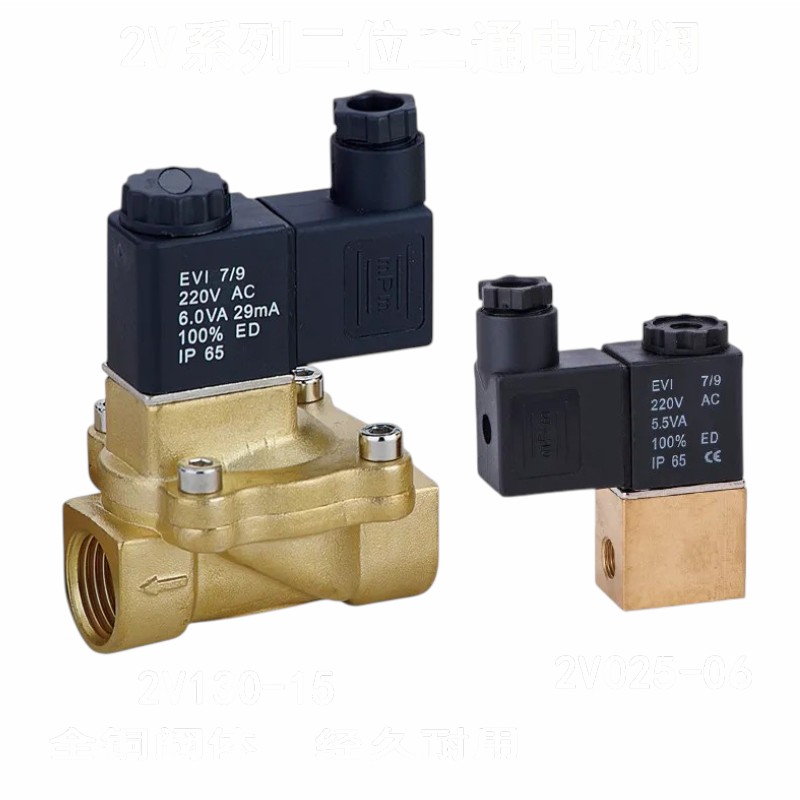

2V Series Brass Compact Indirect Operated Solenoid Valve with Low Power Consumption Coil
Brass Solenoid Valve

2V Series Brass Compact Indirect Operated Solenoid Valve with Low Power Consumption Coil

1/8″ to 1″ (DN6-DN25) G/NPT Threaded Solenoid Valve. Specifically engineered for Air, Water, and Light Oil applications. Normally Closed (NC).

  • Energy-Efficient Operation: Low power consumption 7W coil reduces operational costs.

  • High Pressure Resistance: Reliable performance with a 16 bar (232 PSI) pressure rating.

  • Space-Saving Design: Narrow profile and compact footprint for tight industrial installations.

  • High-Speed Response: Compact pilot design ensures quicker cycle times than standard solenoid valves.

  • Superior Performance: Built to withstand rigorous pressure fluctuations with high-grade brass construction.

Commonly used as an alternative to:

  • Burkert small-flow energy-saving valves

  • ASCO compact general purpose series

  • SMC / Festo miniature pneumatic valves

Add to quote

The 2V Series is a high-performance, indirect operated (pilot-operated) brass solenoid valve designed for modern industrial automation. Featuring a specialized low-power consumption coil, this series delivers high efficiency without sacrificing mechanical strength.

The compact pilot architecture allows for a significantly faster response time compared to traditional solenoid valves, while the narrow profile makes it ideal for manifold mounting or integrated machinery. With a robust 16 bar pressure rating and high-sensitivity internal components, the 2V series provides precise control for air and fluid systems requiring high reliability in a small form factor.

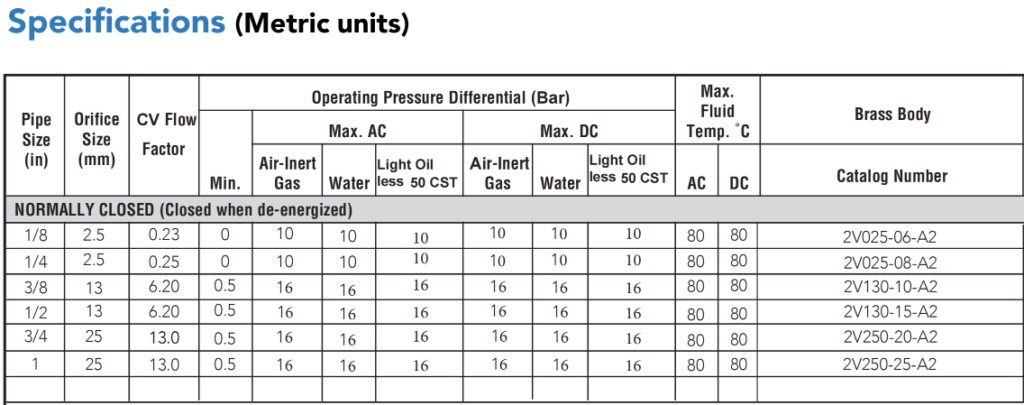

Technical Specifications

  • Body Material: Forged Brass

  • Seal Material: NBR (Standard) / Viton (Optional)

  • Operation: Indirect Operated (Pilot-Operated)

  • Pressure Range: 0.05 – 1.6 MPa (0.5 – 16 Bar)

  • Temperature Range: -5°C to 80°C

  • Flow Factor (CV): 0.23 -13.0

  • Interface: G Thread / NPT Thread

  • Voltage Options: 220V AC / 110V AC / 24V DC / 12V DC

  • Power Consumption: 7W / 5.5VA

  • Insulation: Class F

  • Protection Class: IP65

  • Certification: CE

Not sure if this fits your system? Send us your current model or application — we will help you match the right solution.

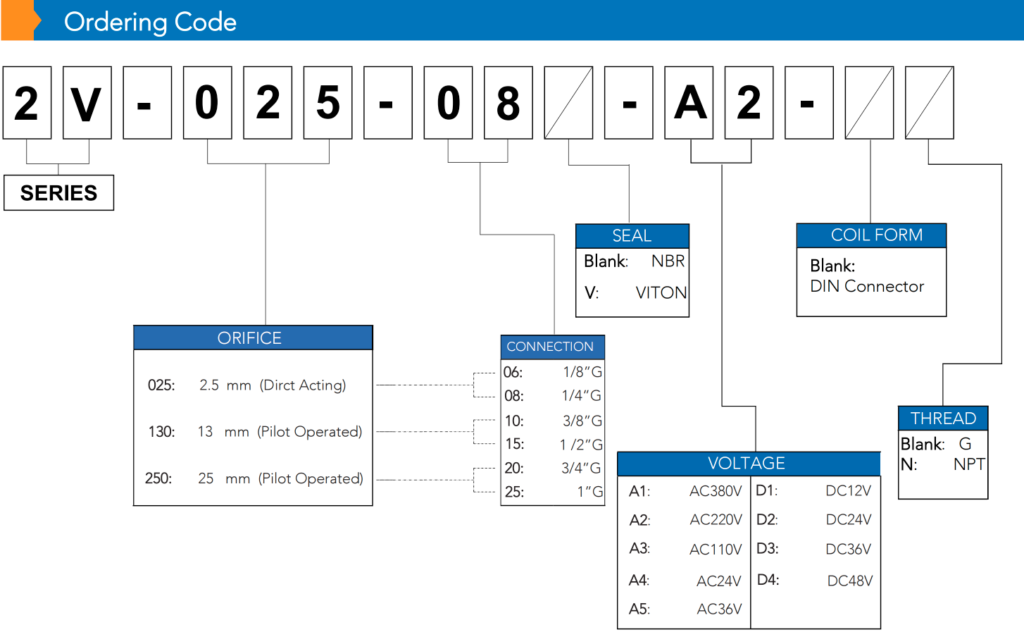

Pipe Connection (NPT/G)

1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″
Voltage

220V AC, 110V AC, 24V AC, 24V DC, 12V DC
