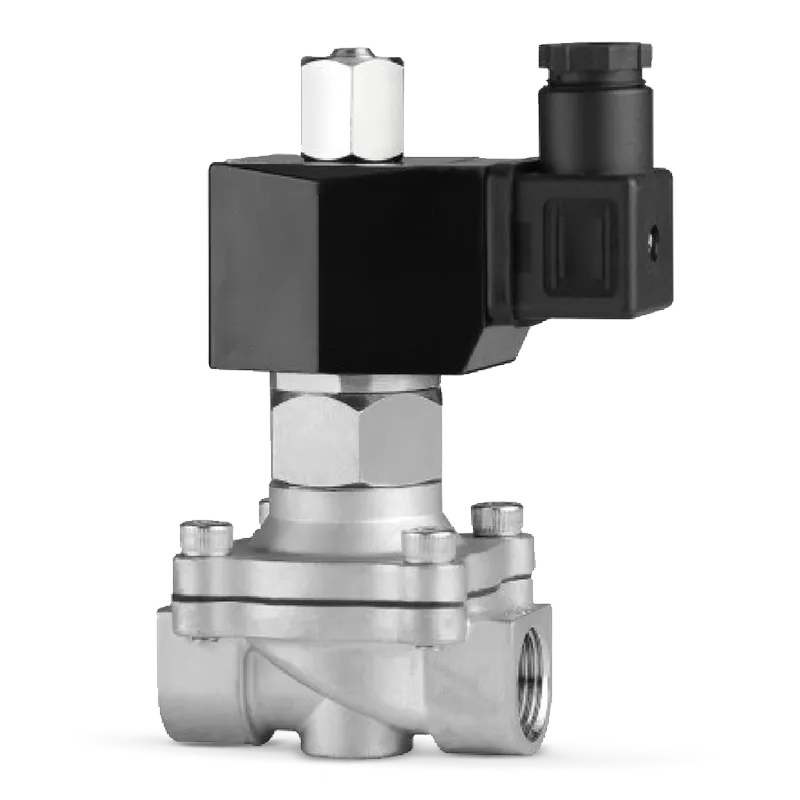

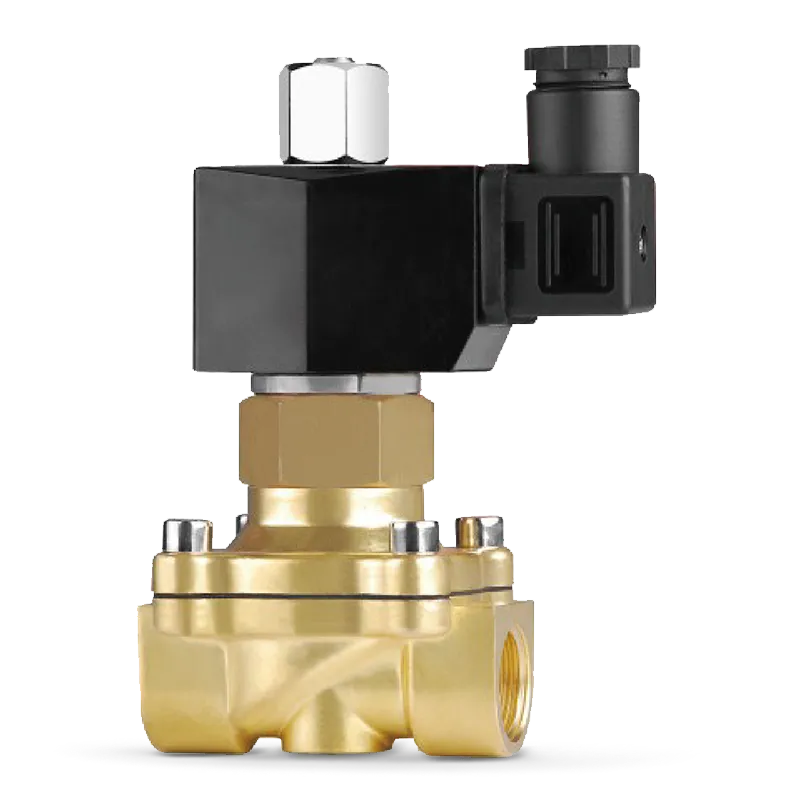

2W NO Series Zero Differential Solenoid Valve – Brass & SS304

Product Overview
The 2W NO Series is a high-performance, two-position two-way solenoid valve featuring a direct-acting or semi-direct-acting lifting diaphragm structure. This design allows for “Zero Differential” activation, ensuring the valve opens and closes reliably even at 0.0 MPa (0 PSI), making it the ideal solution for systems with inconsistent or minimal pressure, such as gravity-fed tanks and low-pressure pipelines.

Technical Data
Connection Size: G (NPT)  3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
Orifice Range: Please refer to data sheet
Operation Model: Direct Acting
Body Material: Brass / SUS304
Working Pressure: 0 – 6 bar / 0 – 87 PSI (0.0MPa – 0.6MPa)
Voltage Options: DC 12V, 24V / AC 110V, 220V, 240V
Sealing Material: NBR (Standard), EPDM, VITON (FKM)
Wiring: Flying leads / DIN connector / Water-proof coil
Protection Level: IP65
Certification: CE

“Custom specifications including special voltages, high-temperature seals, and specific flow requirements are available upon request.”
