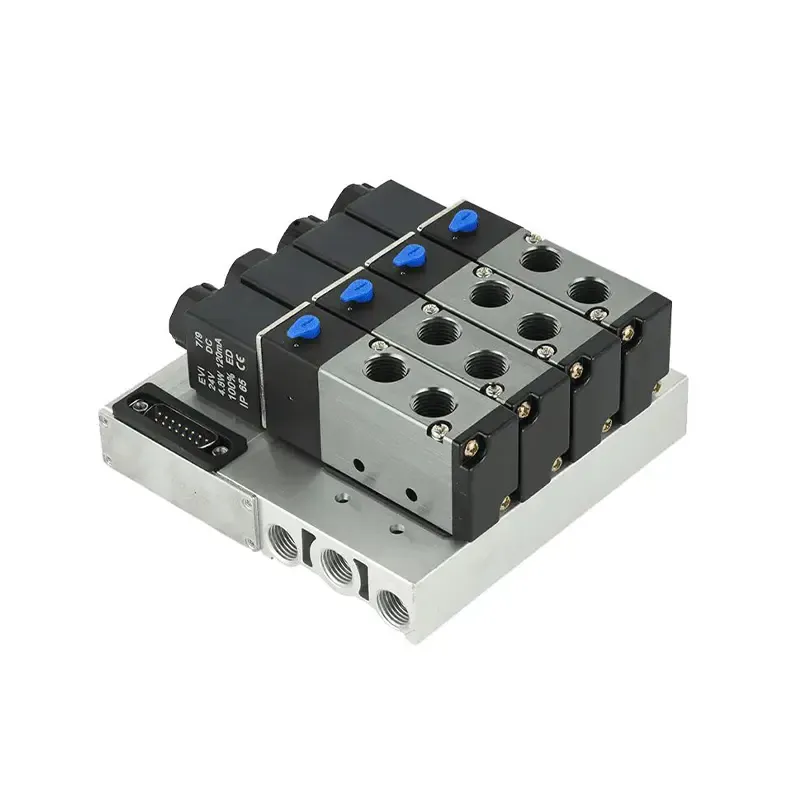

SV Series Integrated Manifold with D-sub Connector (5/2 Way)

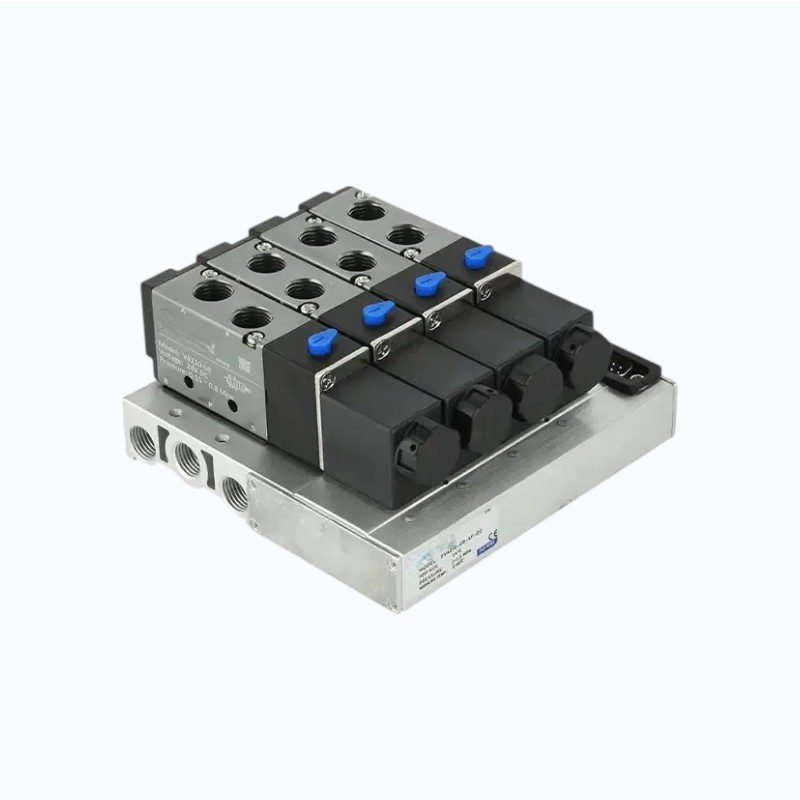

SV Series Integrated Manifold with D-sub Connector (5/2 Way) - Image 2
SV Series Integrated Manifold with D-sub Connector (5/2 Way) - Image 3
Pneumatic Control

SV Series Integrated Manifold with D-sub Connector (5/2 Way)

Plug-in Type 5/2 Way Solenoid Valve Manifold | D-sub Multi-pin Connection | 3 to 23 Stations | 1/8″ – 1/4″ Port | LED Indicators | CE Certified

  • Alternative: High-performance replacement for SMC SY Series, Festo VTUG, and Airtac 6V.

  • D-sub Connectivity: Single multi-pin connector for rapid wiring | Saves 80% labor cost.

  • 1-Second Maintenance: Modular plug-in design for instant “plug out & in” valve replacement.

  • Cost-Efficient Manifold: Common air inlet reduces tubing and fitting requirements.

  • Ultra-Compact: Space-saving integrated design for high-density control cabinets.

  • Visual Status: Independent LED indicators on every valve station.

  • Custom Aesthetics: Optional valve body colors available.

Add to quote
SKU: SV-SV Category: Tag:

The SV Series is a high-density pneumatic control solution featuring an integrated manifold design with D-sub multi-pin electrical connectivity. This system is specifically engineered to eliminate the “spaghetti wiring” common in large pneumatic installations, providing a clean, professional, and reliable interface between the PLC and the actuators.

The SV Series is a high-density pneumatic control solution featuring an integrated manifold with D-sub multi-pin electrical connectivity. It eliminates complex individual wiring, providing a clean and reliable interface for automated machinery.

Built on a robust aluminum base, the SV series utilizes a plug-in architecture that allows valves to be swapped in seconds without disturbing the pneumatic circuit. This modularity, combined with a centralized common supply rail, makes it the ideal choice for packaging, semiconductor, and high-speed assembly lines where minimizing downtime is critical.

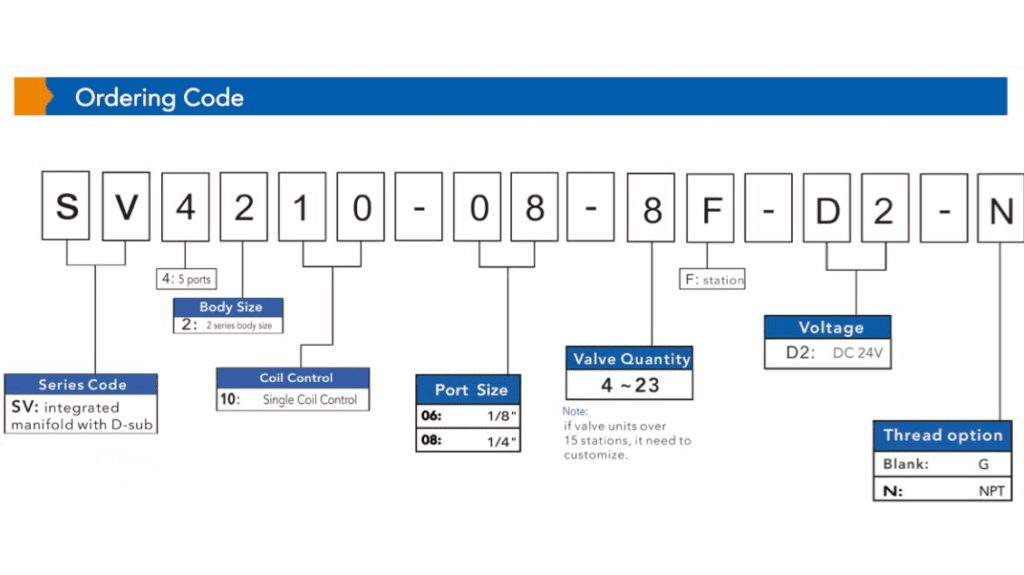

  • Valve Type: 5 Way 2 Position (Single Control)

  • Port Size: 1/8″ or 1/4″ (G / NPT Thread)

  • Working Medium: Compressed Air (40μm filtered)

  • Working Pressure: 0.15 – 0.8 MPa (21 – 114 PSI)

  • Max. Proof Pressure: 1.2 MPa (174 PSI)

  • Working Temperature: -5°C to 60°C (23°F to 140°F)

  • Max. Acting Frequency: 5 Cycles / Second

  • Voltage: DC24V (Standard)

  • Protection: IP65 | Class F Insulation

  • Certification: CE









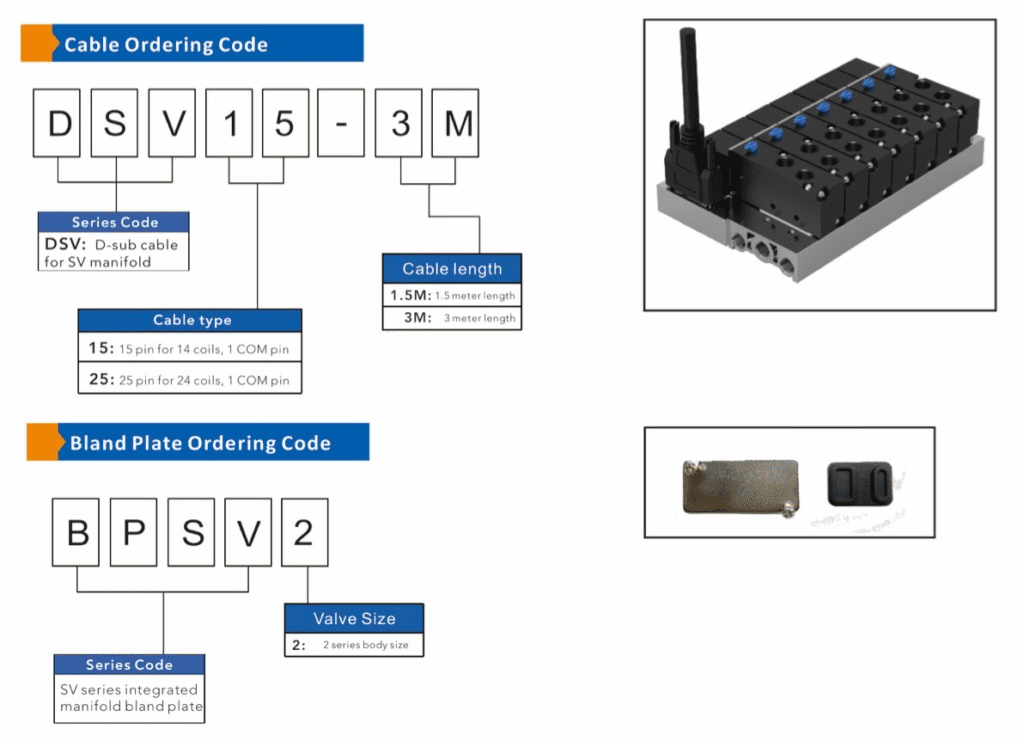

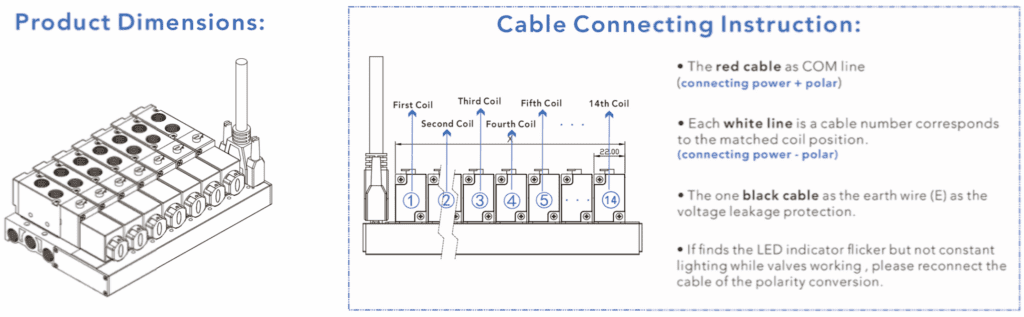

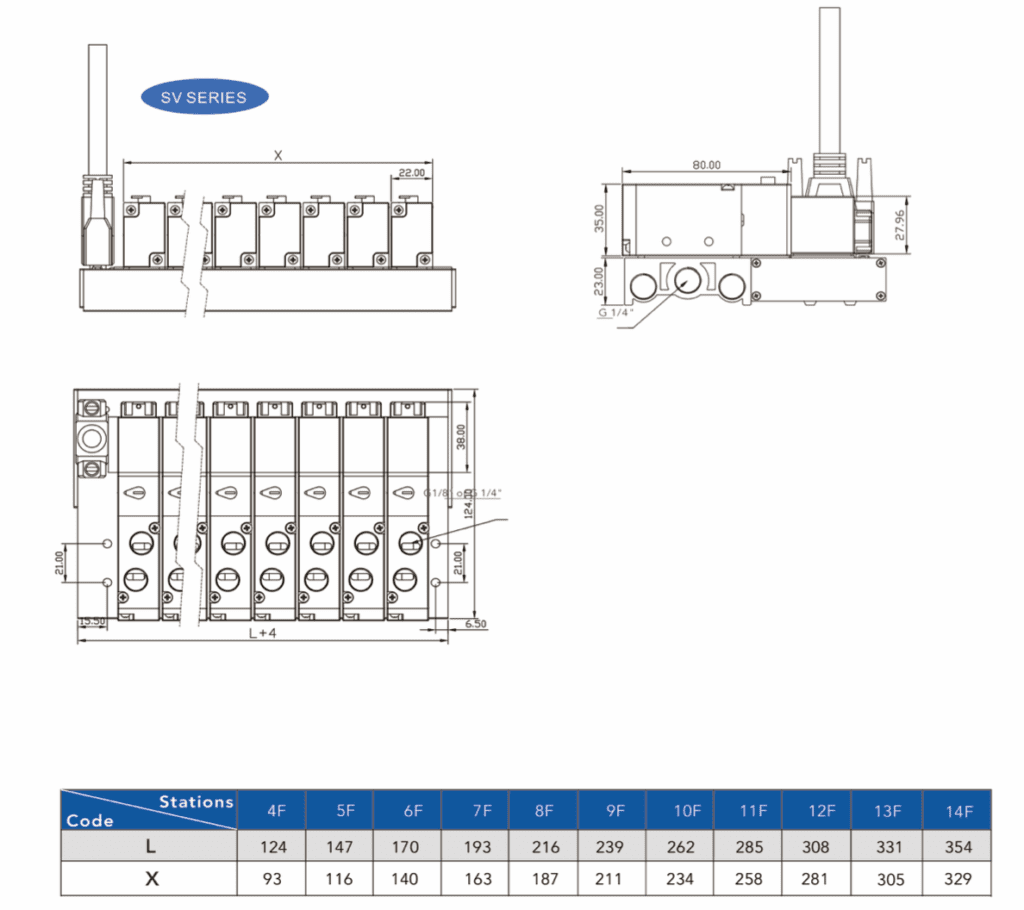

Pipe Connection (NPT/G)

1/8″, 1/4″
