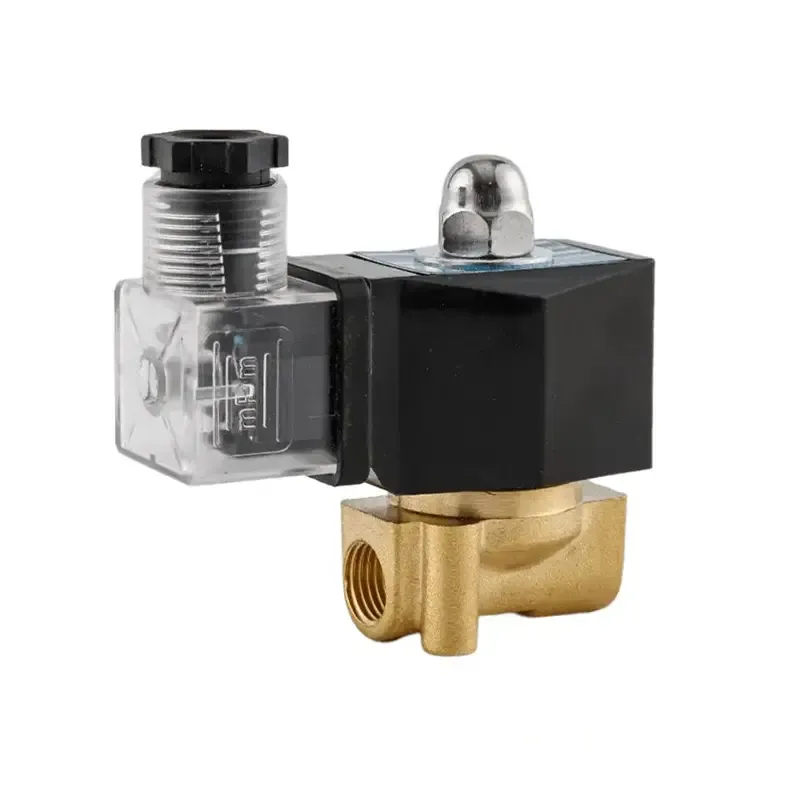

2WH Series Direct-Acting 20 Bar High Pressure Solenoid Valve with Compact Size Design

1/8″ to 3/8″ G/NPT Thread | Direct Acting | 2/2 Way Normally Closed/Open | High-Pressure Brass Body | Zero Pressure Start | Compact Design

  • Applications: CNC | High-pressure cleaning | Automation | Laser cutting | Medical equipment

  • Direct-Acting Performance: Zero pressure start capability with a faster reaction time than pilot-operated alternatives.

  • High-Pressure Reliability: Specialized internal geometry for stable performance under high-load industrial conditions.

  • Rugged Construction: Forged brass body with high-grade seal options (NBR/EPDM/Viton) for versatile chemical compatibility.

  • Compact Footprint: Small-size, lightweight structure for easy installation in tight manifold spaces.

  • Industry Compatibility: Engineered as a reliable alternative to:

    • Burkert 6013

    • ASCO RedHat direct-acting valves

    • SMC / Festo compact high-pressure series

Add to quote
SKU: SV-2WH Categories: , Tag:

The 2WH Series is a robust, direct-acting solenoid valve designed for precision control of high-pressure air, water, and light oils. Unlike standard valves, the 2WH operates efficiently from 0 bar, making it ideal for systems with fluctuating or low-pressure differentials. Its compact brass body and high-flow orifice design ensure a long service life even in demanding environments like CNC coolant systems and high-pressure washing units. With a simple, modular design, it allows for rapid maintenance and coil replacement to minimize industrial downtime.

  • Body Material: Forged Brass (Stainless Steel 304 optional)

  • Seal Material: NBR / EPDM / VITON

  • Operation: Direct Acting (Normally Closed / Normally Open)

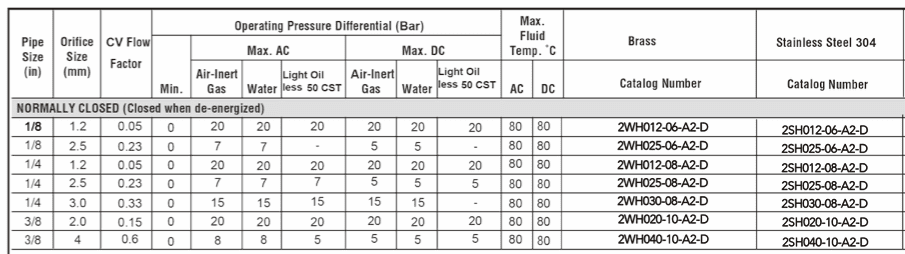

  • Orifice Size: 1.2mm to 4.0mm

  • Working Pressure: 0 – 2.0 MPa (0 – 290 Psi)

  • Working Temperature: -5°C to 80°C (23°F to 176°F)

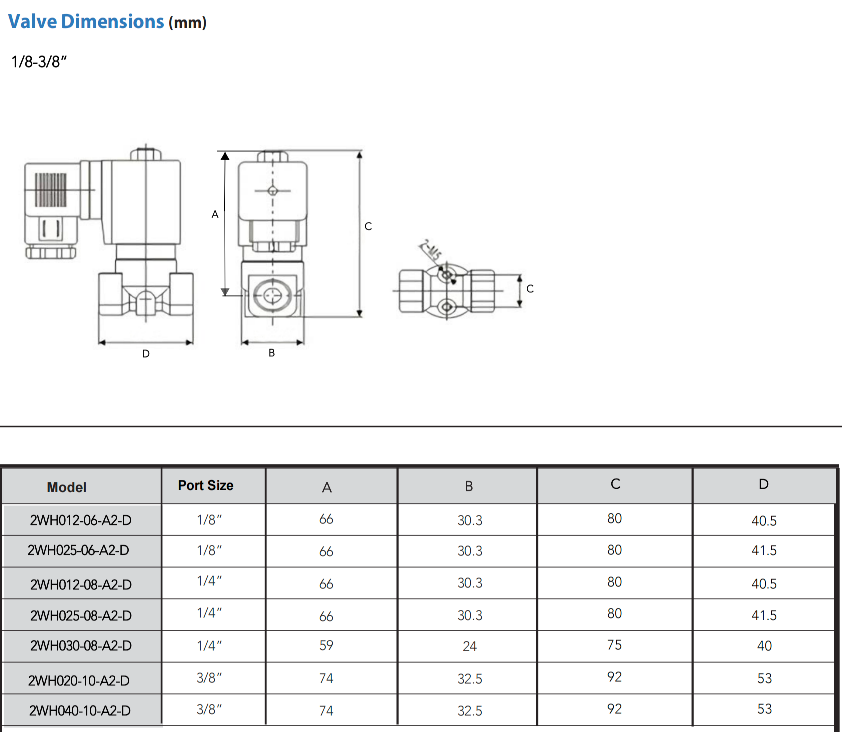

  • Interface: 1/8″, 1/4″, or 3/8″ (G / NPT Thread)

  • Protection: IP65

  • Certification: CE
