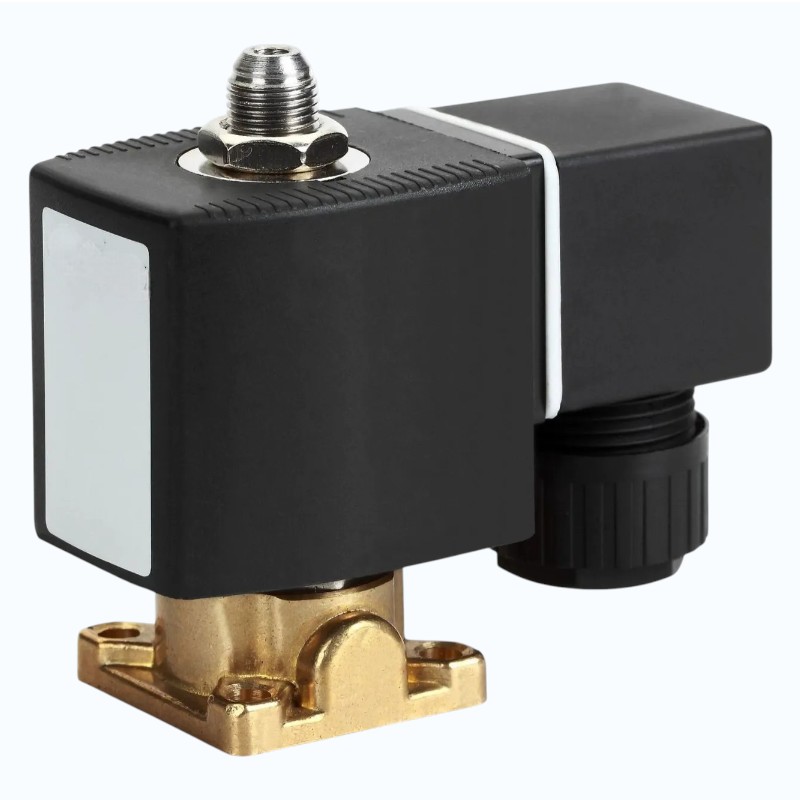

6014FL Series Flange-Mount 2/2, 3/2 Direct-Acting Valve

Manifold-Mount Design | 32mm Compact Width | Brass/SS Body | FKM Seal | 2/2 or 3/2 Way NC | Zero-Leak Plunger | CE Certified

• Sub-base Integration: Designed for mounting on multi-station manifolds to eliminate complex piping and reduce leak points.

• Direct-Acting Plunger: Reliable shut-off from 0 bar pressure; ideal for technical vacuums and low-pressure media.

• High-Cycle Performance: Robust internal welded guide tube ensures millions of switching cycles with high repeatability.

• Standardized Footprint: Matches the industry-standard 32mm flange interface for rapid replacement in existing systems.

• Applications: Automation Manifolds | Pilot Control Blocks | Medical Oxygen Equipment | Pharmaceutical Filling | Laboratory Sampling.

Commonly used as an alternative to:

• Burkert 6014 (Sub-base / SFB Interface version)

• ASCO 256 Series (Manifold mount)

• Parker 7321 series (Sub-base versions)
