4″ 11A2 Titanium-Coated Diamond Cup Wheel — 20mm Arbor Flaring Cup Wheel for Universal Cutter Grinders
Premium 4″ (100mm) 11A2 Titanium-Coated Electroplated Diamond Flaring Cup Wheel with 20mm arbor, specifically engineered for universal cutter grinders, carbide end mill sharpening, and lathe tool maintenance. Coated with high-grade titanium-plated diamond grains for superior heat resistance and extended service life.

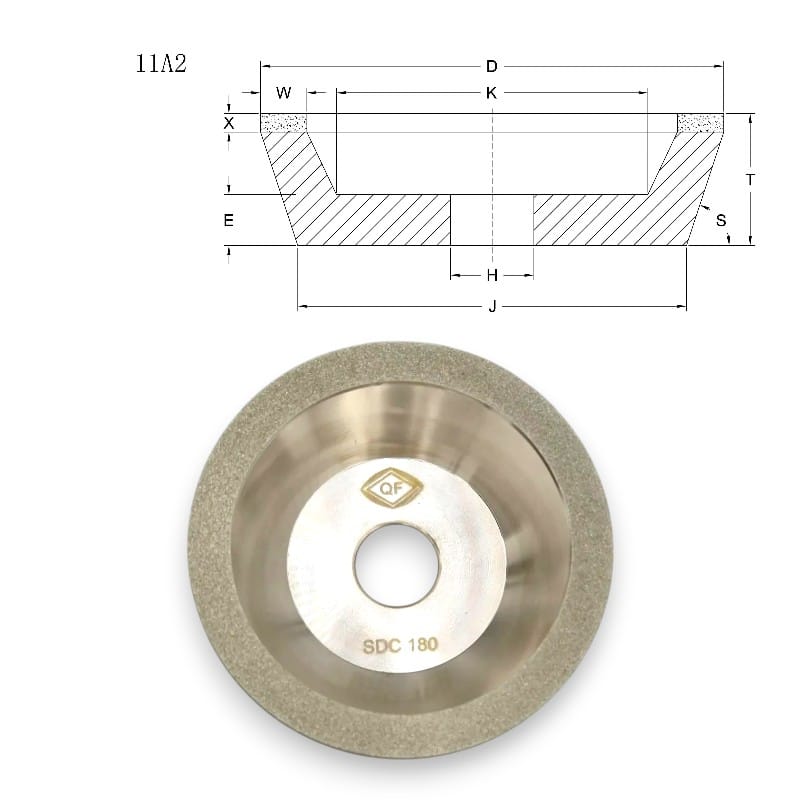

- Wheel Shape: ANSI / FEPA 11A2 Flaring Cup Wheel (100D * 20H * 36T mm)
- Abrasive Coating: Titanium-Plated Industrial Diamond (Titanium Electroplated SDC)
- Arbor Hole: 20mm Bore (Fits U2 / U3 Universal Cutter Grinders & Tool Sharpeners)
- Grit Selection: #100, #150, #200, #240, #320, #400, #600 Grit
- Key Application: Precision face grinding and fluting of carbide tools, HSS cutters, and tungsten alloy blades
- Price:$48 / unit
The 11A2 Titanium-Coated Electroplated Diamond Cup Wheel (100D * 20H * 36T mm) is a high-precision superabrasive tool engineered for sharpening and conditioning carbide-tipped tools, solid carbide end mills, lathe bits, and woodworking cutters. Designed according to the industry-standard 11A2 flaring cup shape, featuring a specialized titanium-plated diamond surface that resists thermal degradation and grain loss far better than conventional nickel-plated wheels.
Built with a 20mm center arbor and a 36mm total cup profile height, this 11A2 wheel seamlessly mounts onto popular U2 and U3 universal cutter grinders, bench grinders with 20mm shafts, and specialized cutter re-sharpening equipment.
Key Advantages & Technical Features
- Industry-Standard 11A2 Profile: The angled flaring rim allows easy entry into narrow cutter flutes and complex tool geometry without wheel interference.
- Titanium Electroplating Matrix: The titanium shield reinforces bond tenacity, extending wheel longevity during dry or coolant-assisted carbide sharpening.
- Zero-Distortion Rim Profile: Rigid steel body retains exact cup geometry, delivering crisp, burr-free primary and secondary relief angles on carbide flutes.
- Maximum Cutting Efficiency: Exposed diamond grains require zero dressing or conditioning before use, providing immediate aggressive cutting power.
Target Applications
- Sharpening solid carbide end mills, reamers, drills, and lathe turning tools on 11A2 grinder setups
- Face grinding and edge profiling on tungsten carbide and hardened tool steel (HRC 60+)
- Woodworking carbide saw blade maintenance and router bit re-sharpening
- Universal tool & cutter grinding operations in CNC and manual machine shops
Grit Selection Guide
| Grit Grade | Surface Finish Quality | Recommended Usage |
|---|---|---|
| #100 / #150 Grit | Coarse / Fast Stock Removal | Rapid stock removal, chipped carbide repair, and rough shaping |
| #200 / #240 Grit | Medium / General Sharpening | Standard tool sharpening, relief angle grinding, and daily maintenance |
| #320 / #400 Grit | Fine / Razor Edge Finishing | Fine edge honing, micro-burr removal, and smooth cutting edge finishing |
| #600 Grit | Ultra-Fine / Polish Finish | Mirror polishing and precision micro-groove honing on carbide tools |
Custom Bores & Bulk Procurement:
We supply custom arbor reduction bushings (e.g., 20mm to 1/2″ or 5/8″) and custom 11A2 grit blends. Contact our technical team at tanya@zyindustrial.com or visit zyindustrial.com.
| Grit | 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #100 Grit (Coarse), 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #150 Grit (Coarse / Best Seller), 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #200 Grit (Medium), 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #240 Grit (Medium), 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #320 Grit (Fine), 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #400 Grit (Fine), 4" D x 20mm H x 1-7/16" T (100D * 20H * 36T mm) – #600 Grit (Ultra Fine) |
|---|
