Metal Bond Diamond Grinding Wheel (11A2)
Metal Bond Diamond/CBN Grinding Wheels

Metal Bond Diamond Grinding Wheel (11A2)

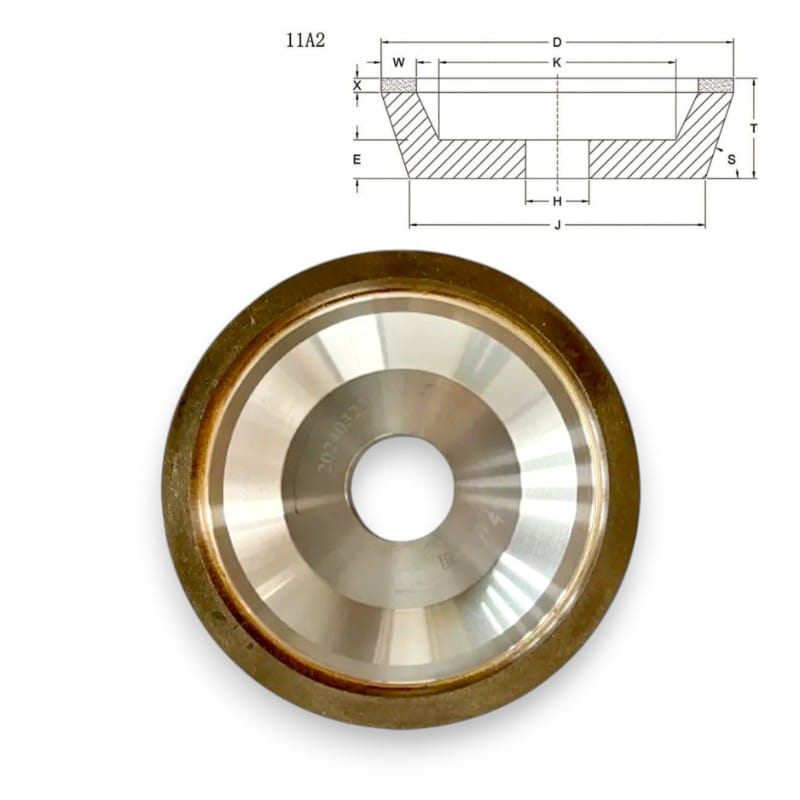

The 11A2 flaring cup wheel features an angled rim that provides natural clearance during grinding, eliminating interference with adjacent tool geometry.

Designed for precision flute, relief, and rake face grinding on rotary cutting tools, it is the standard form factor used on 5-axis CNC tool grinders including ANCA, Walter, and Rollomatic machines.

Metal bond construction ensures consistent profile retention across high-volume production runs.

Add to quote
SKU: GW-MD-11A2 Category: Tags: ,

Specifications

Parameter Imperial Metric
Shape / Form 11A2 11A2
Abrasive Synthetic diamond Synthetic diamond
Bond type Resin bond Resin bond
Outer diameter (D) Custom Custom
Body height (T) Custom Custom
Bore diameter (H) Custom Custom
Rim width (W) Custom Custom
Abrasive layer width (X) Custom Custom
Grit / mesh 60 / 80 / 100 / 120 / 150 / 180 / 220 / 320 / 360 # — or custom (60–360#)



Applications

Application Typical OD Recommended Grit Notes
Carbide end mill flute grinding 100 – 150 mm 150 – 320 # Flared profile clears chip pocket without secondary dressing
Drill flute & point angle grinding 75 – 150 mm 120 – 220 # Standard wheel for 5-axis drill grinding programs
Tool clearance & relief angle grinding 100 – 200 mm 120 – 320 # Angled rim contacts rake face at programmed relief angle
Step drill & specialty profile grinding 100 – 175 mm 150 – 220 # Flare geometry accommodates complex tool cross-sections
CNC tool grinders (ANCA, Walter, Rollomatic) 100 – 200 mm 100 – 320 # Machine-specific flange bore and drive pin layout required at order
PCD / PCBN tool flute & edge grinding 100 – 175 mm 60 – 150 # Metal bond retains profile under interrupted cut on superhard tools



Ordering Information

Item Detail
MOQ 1 piece
Lead time 7 business days, Custom: quoted on request
Custom quote Within 24 hours of drawing or spec receipt
Payment 100% T/T in advance · PayPal · Credit card
