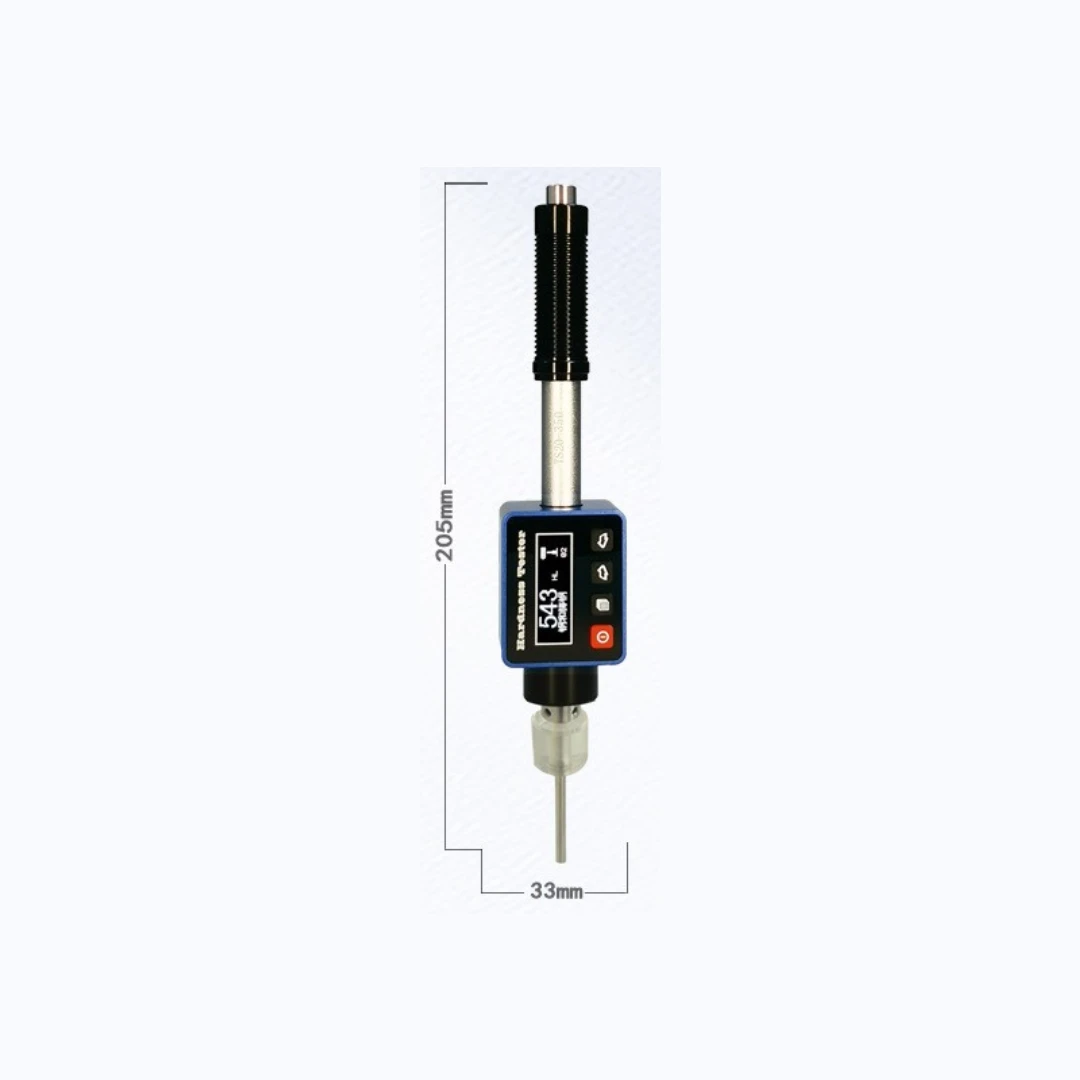

LH104G Leeb Hardness Tester

Product description

The LH104G is a pen-type (integrated) Leeb hardness tester with a high impact-energy G-type impact device, designed for fast, non-destructive hardness testing of large castings and rough or coarse-grained surfaces. It measures 3 hardness scales directly on its OLED display and connects via Bluetooth to a mobile phone or portable printer for real-time data sharing and report printing, storing several thousand measurement sets for later review.

Technical specification:

• Hardness scales: HL, HB, HRB
• Impact device: G-type (built-in, large castings/rough surfaces)
• Measuring range: HLG 200–750, HRB 47.7–99.9, HB 90–646
• Measuring direction: 360° (vertical down, oblique down, horizontal, oblique up, vertical up)
• Applicable materials: steel & cast steel, grey cast iron, ductile iron, cast aluminum alloy
• Display: OLED 128×64 dot matrix
• Data storage: 373–2688 sets (32–1 impacts per set)
• Interface: USB, Bluetooth (connects to phone or portable printer)
• Power supply: 5VDC, 220VAC (charging)
• Charging time: 4–5 hours
• Battery: 3.7V, 300mAh Li-ion
• Continuous working time: ~30 hours
• Operating temperature: 0–40°C
• Storage temperature: -25–70°C
• Dimensions: 253×37×36mm
• Weight: ~258g
• Standard block reference: HLG 590±40 / 500±40, indication error ±10 HLG, repeatability 10 HLG

Included accessories:

• Main unit: 1pc
• G-type impact device (built-in)
• Support ring: 1pc
• Standard test block: 1pc
• Charger: 1pc
• Data cable: 1pc
• Manual: 1pc

Optional accessories:

• D impact device (general-purpose applications)
• DL impact device (deep hole/blind hole applications)
• C impact device (small/thin workpieces)
• Additional support rings
• Additional test blocks (high/medium/low HLD value)
• Portable Bluetooth printer
