M4 Series 5/2 Way NAMUR Solenoid Valve – Direct-Mount Actuator Control

1/8″ to 1/2″ Port Size | 5-Port 2-Position | NAMUR Standard Interface | Direct Actuator Mounting | Single or Double Coil

  • NAMUR Standard Interface: Specifically designed for direct mounting to pneumatic actuators (ball/butterfly valves) | Eliminates the need for extra brackets and piping.

  • Precision Spool Technology: Hard-anodized internal bore (3-5 μm anti-wear coating) | High-speed response with minimal friction loss.

  • Rugged Construction: Hard-anodized Aluminum alloy body | Excellent environmental resistance for industrial plant use.

  • Flexible Manual Override: Equipped with a manual button for easy installation, testing, and debugging.

  • Integrated Reliability: High-grade imported seals for 50% longer lifespan | Non-stick pilot head design for consistent magnetic performance.

Commonly used as an alternative to:

  • Airtac 4M Series (4M210, 4M310)

  • ASCO NAMUR pilot valves

  • Festo VSNC Series

Add to quote
SKU: SV-M4 Category:

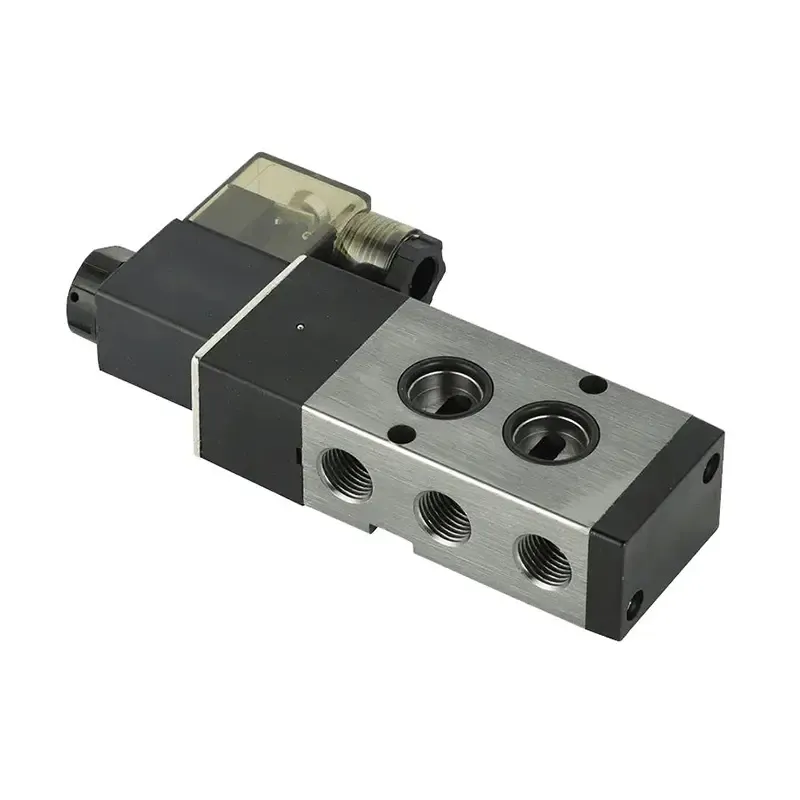

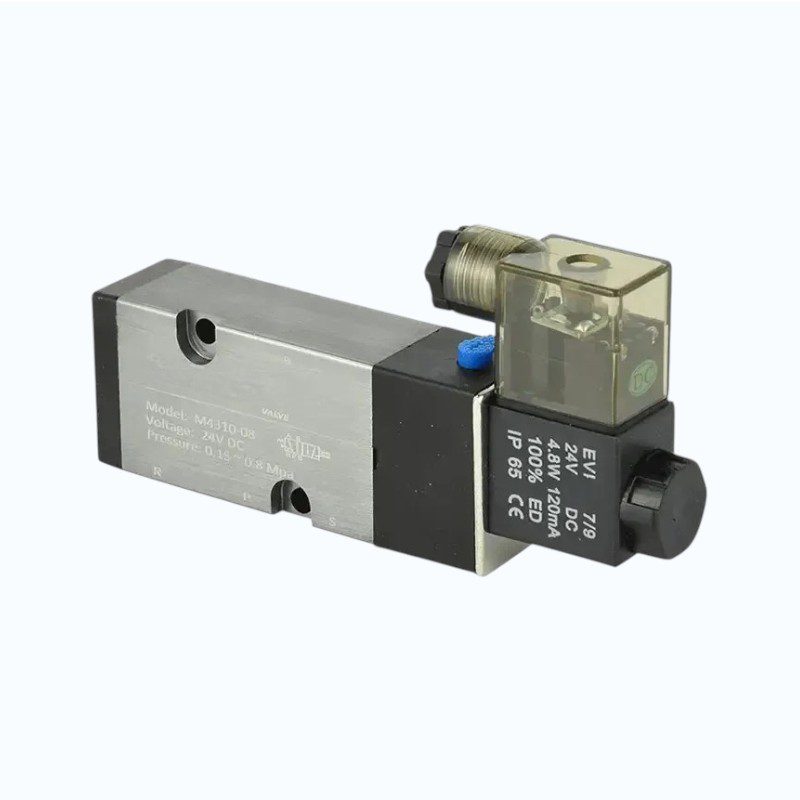

The M4 Series is a high-performance 5/2-way solenoid valve strictly adhering to the NAMUR mounting standard. This series is the industrial benchmark for controlling double-acting pneumatic actuators. By mounting directly onto the actuator face, it creates a seamless, “pipe-free” connection that reduces potential leak points and simplifies system architecture.

Designed for high-frequency automation, the M4 series features a precision-ground piston rod and specialized sealing technology that ensures reliable switching over millions of cycles. The valve body is hard-anodized for superior wear resistance. With an IP65 protection rating and CE certification, it is the ideal choice for process industries, water treatment, and chemical plant automation.

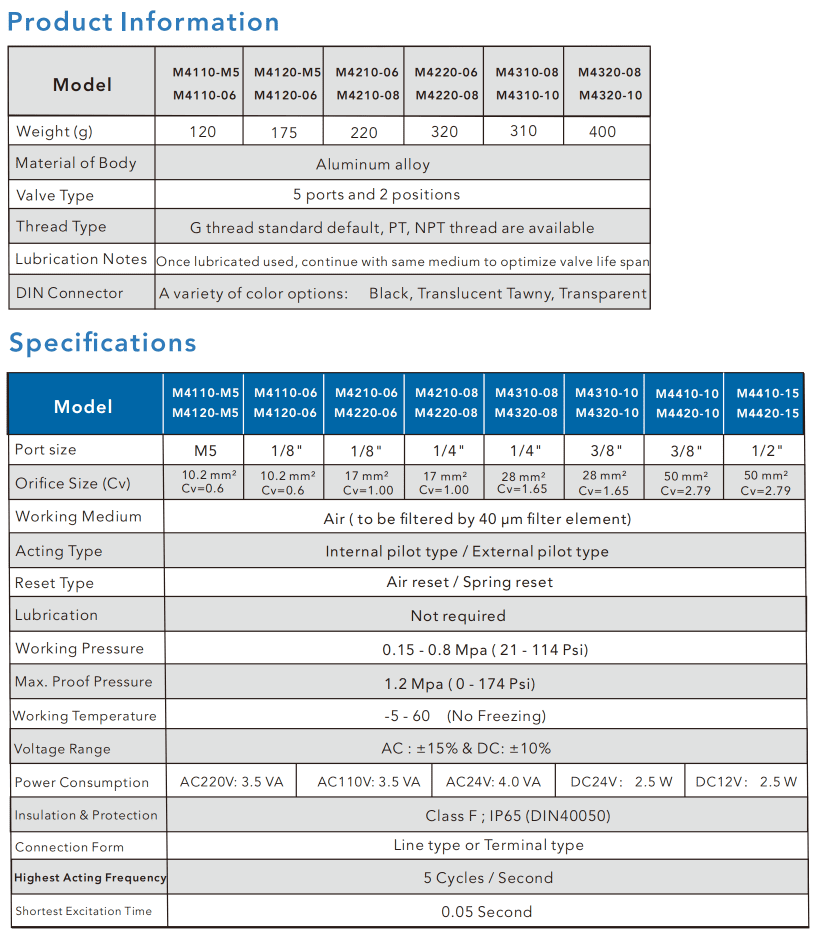

Technical Specifications

  • Body Material: Hard-Anodized Aluminum Alloy

  • Valve Type: 5 Port 2 Position (NAMUR Type)

  • Acting Type: Internal Pilot

  • Reset Type: Air Reset / Spring Reset

  • Port Size Range: 1/8″, 1/4″, 3/8″, 1/2″ (G / NPT / PT)

  • Working Pressure: 0.15 – 0.8 Mpa (21 – 114 Psi)

  • Working Temperature: -5°C to 60°C (23°F to 140°F)

  • Max. Proof Pressure: 1.2 Mpa (174 Psi)

  • Protection/Insulation: IP65 | Class F

  • Certification: CE

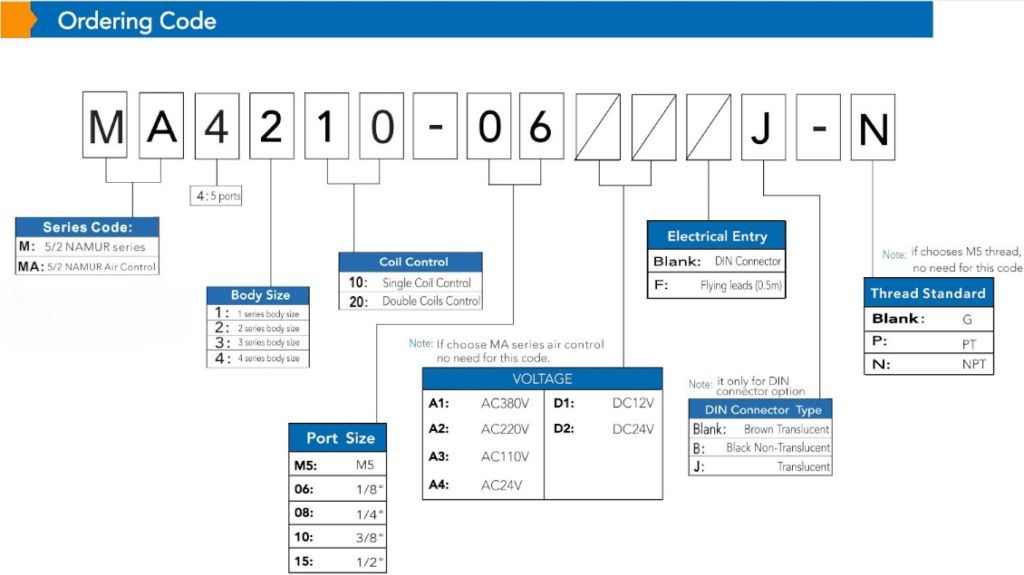

Quick Selection Guide:

  • M4110 / M4210: Single Coil 5/2 Way (Standard NAMUR)

  • M4120 / M4220: Double Coil 5/2 Way (Memory Function)

  • MA Series: Air Control NAMUR Valve (No Solenoid/Coil)

Note: Valve body color can be customized.





Pipe Connection (NPT/G)

M5, 1/8″, 1/4″, 3/8″, 1/2″
Voltage

220V AC, 110V AC, 24V AC, 24V DC, 12V DC
