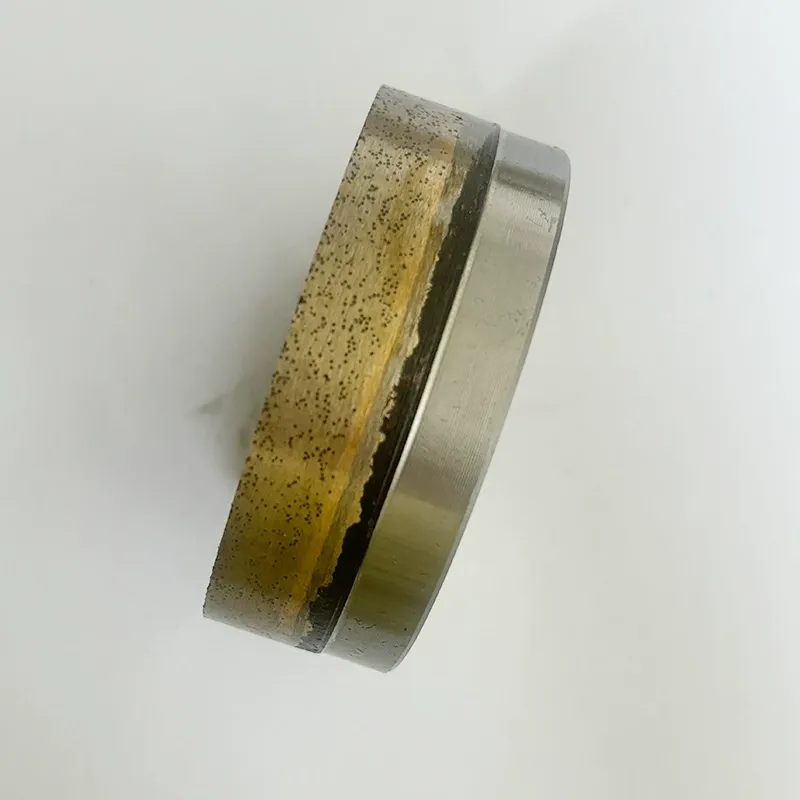

Metal Bond Diamond Grinding Wheel (6A2) - Image 2
Metal Bond Diamond/CBN Grinding Wheels

Metal Bond Diamond Grinding Wheel (6A2)

The 6A2 straight cup wheel features a flat annular grinding face, making it ideal for face contact and OD grinding applications.

Its rigid metal bond matrix delivers exceptional wheel life and profile retention, particularly when working with superhard materials such as PCD, PCBN, and tungsten carbide.

Suitable for use on manual and CNC tool & cutter grinders.

Add to quote
SKU: GW-MD-6A2 Category: Tags: ,

Specifications

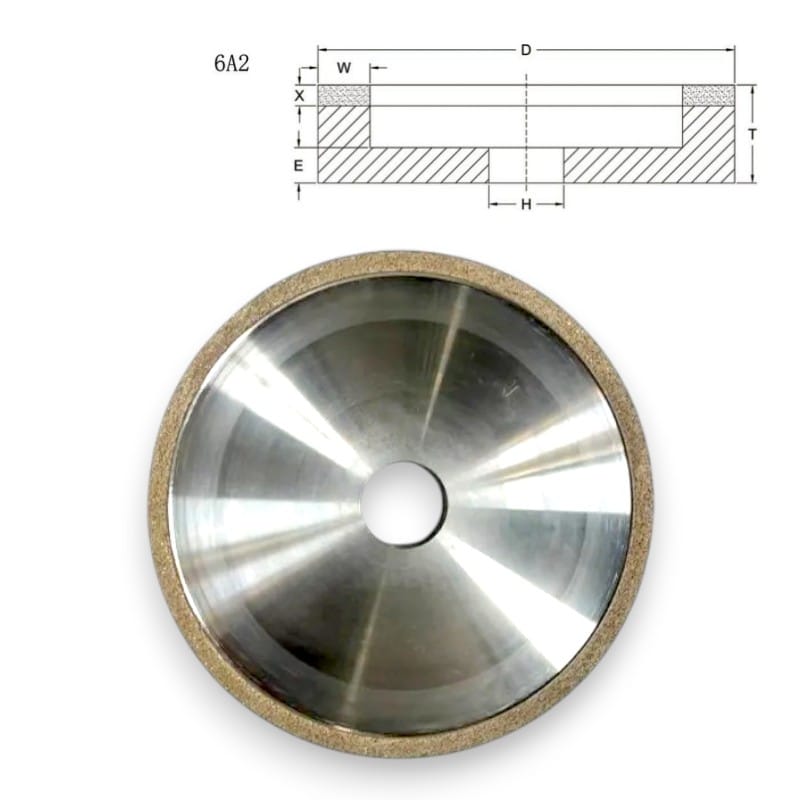

Parameter Imperial Metric
Shape / Form 6A2 6A2
Abrasive Synthetic diamond Synthetic diamond
Bond type Resin bond Resin bond
Outer diameter (D) Custom Custom
Body height (T) Custom Custom
Bore diameter (H) Custom Custom
Abrasive layer width (X) Custom Custom
Grit / mesh 60 / 80 / 100 / 120 / 150 / 180 / 220 / 320 / 360 # — or custom (60–360#)



Applications

The 6A2 straight cup wheel features a flat annular grinding face, making it ideal for face contact and OD grinding applications. Its rigid metal bond matrix delivers exceptional wheel life and profile retention, particularly when working with superhard materials such as PCD, PCBN, and tungsten carbide. Suitable for use on manual and CNC tool & cutter grinders.

Application Typical OD Recommended Grit Notes
Carbide insert face & OD grinding 100 – 250 mm 80 – 180 # Flat rim delivers uniform face contact on insert geometry
HSS tool OD grinding 125 – 200 mm 80 – 150 # Higher MRR; coarser grit for roughing passes
Saw blade & circular blade sharpening 100 – 200 mm 100 – 220 # Cup face engages tooth top and side geometry
PCD / PCBN tool face grinding 100 – 200 mm 60 – 120 # Metal bond essential for superhard substrate; slow feed rate
Surface grinding on tool & cutter grinders 100 – 250 mm 120 – 220 # Compatible with manual and CNC surface grinders
PDC drill bit face reconditioning 200 mm and above 60 – 120 # Large-diameter cup covers full cutter face in one pass



Ordering Information

Item Detail
MOQ 1 piece
Lead time 7 business days; Custom: quoted on request
Custom quote Within 24 hours of drawing or spec receipt
Payment 100% T/T in advance · PayPal · Credit card
