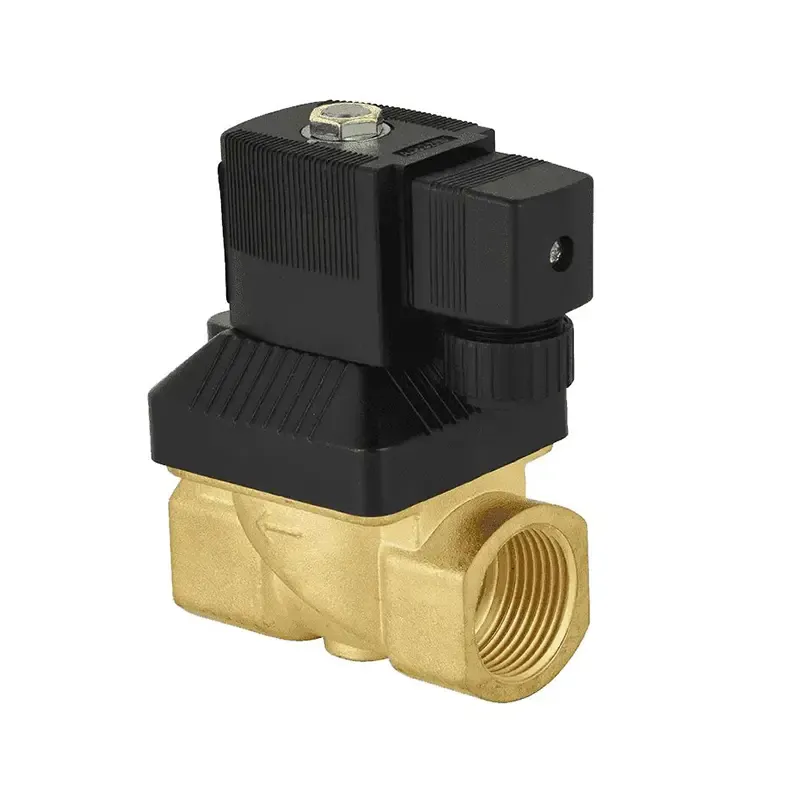

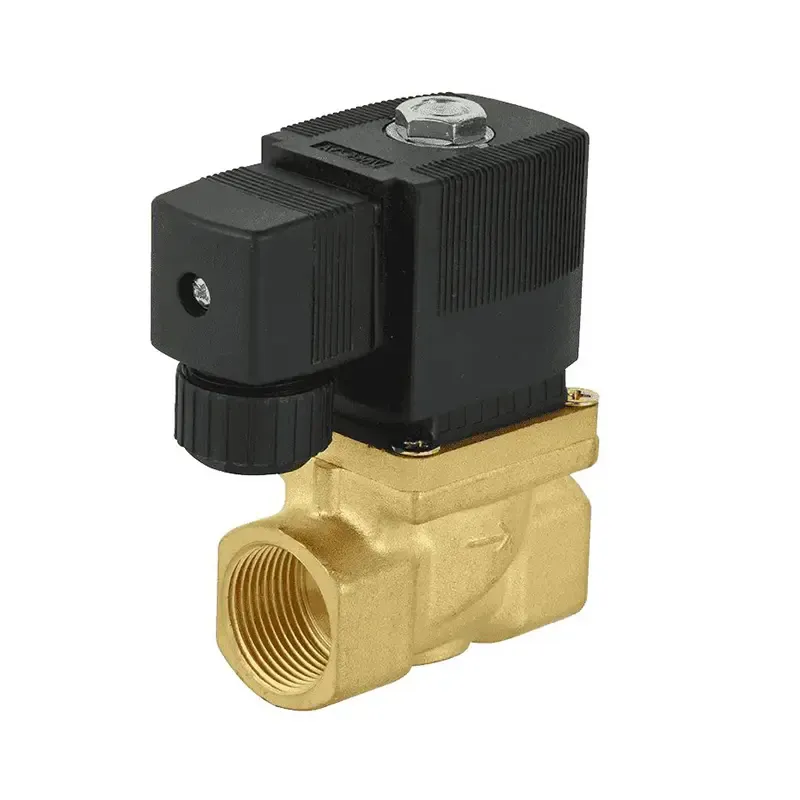

SY223 Series Solenoid Valve with Mounting Free Type | Burkert 6213 Type

1/4″ to 2″ (DN13-DN50) | Anti-Water Hammer Design | Low Noise & Smooth Operation | Forged Brass Body | 2/2 Way Direct Acting & Pilot Operated

• Anti-Water Hammer: Engineered to reduce noise and impact during switching, preventing “quake” and pipe damage.

• Hybrid Drive Technology: Operates via direct acting (for 1/4″ to 1″) and pilot operated (for 1-1/4″ to 2″) to ensure optimal torque and flow.

• High Reliability: Thermosetting plastic-clad coils with IP65 protection for long service life in damp environments.

• Smooth High Capacity: Optimized internal geometry for high flow rates with minimal turbulence.

• Applications: Industrial water control | HVAC systems | Irrigation | Commercial laundry | Large-scale pumping stations.

Commonly used as an alternative to:

• ASCO 8210 / 8221 Series (Quiet closure)

• Burkert 6213 / 6281 Series

• Danfoss EV220B / EV210B Series

• Watts general service water valves
