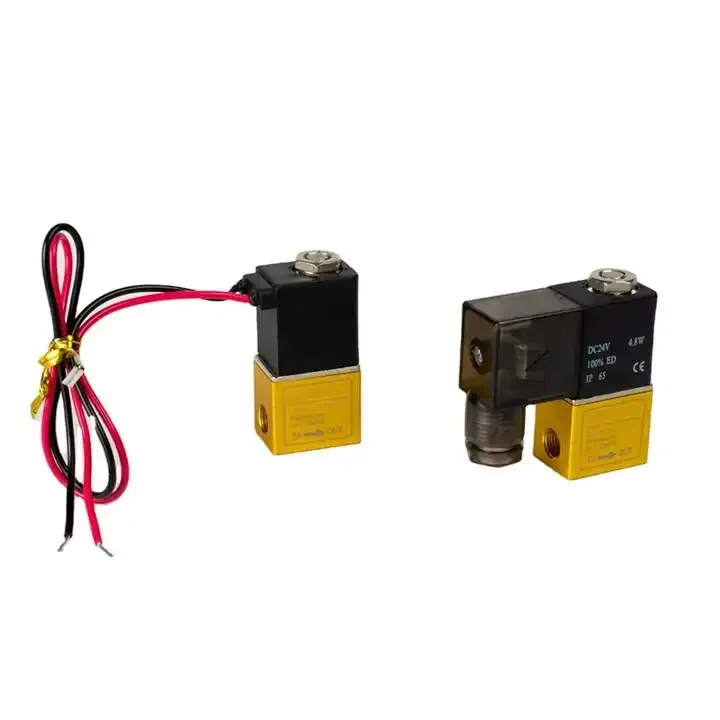

2V Series Mini High-Precision Solenoid Valve – Ultra-Fast Response (0.05s)

G1/4″ Thread | 2/2 Way Direct-Acting | Aluminum or Brass Body | Silent Operation | IP65 Rated

  • High-Speed Execution: Ultra-fast 0.05-second response time | Specifically designed for high-frequency industrial automation.

  • Versatile Media Handling: Compatible with Air, Water, and Oil | Ideal for medical equipment, compressors, and food-grade applications.

  • Precision Built: High-grade CNC machining for superior thread accuracy | Stable internal structure ensures 15 million+ cycle life.

  • Silent & Compact: Low-vibration, silent operation design | Space-saving footprint for integrated manifold installations.

  • Robust Protection: IP65-rated coil for dust and water resistance | Class F/H high-quality insulation for reliable 100% ED duty cycles.

Commonly used as an alternative to:

  • SMC V100/VT Series mini valves

  • Airtac 2V025 Series

  • ASCO compact direct-acting valves

Add to quote
SKU: SV-2V02 Categories: ,

The 2V Series is a professional-grade, direct-acting mini solenoid valve engineered for applications where speed, precision, and space are critical. With a record-breaking response time of 0.05 seconds, it excels in high-speed sorting, medical oxygen concentrators, and precision air compressor control.

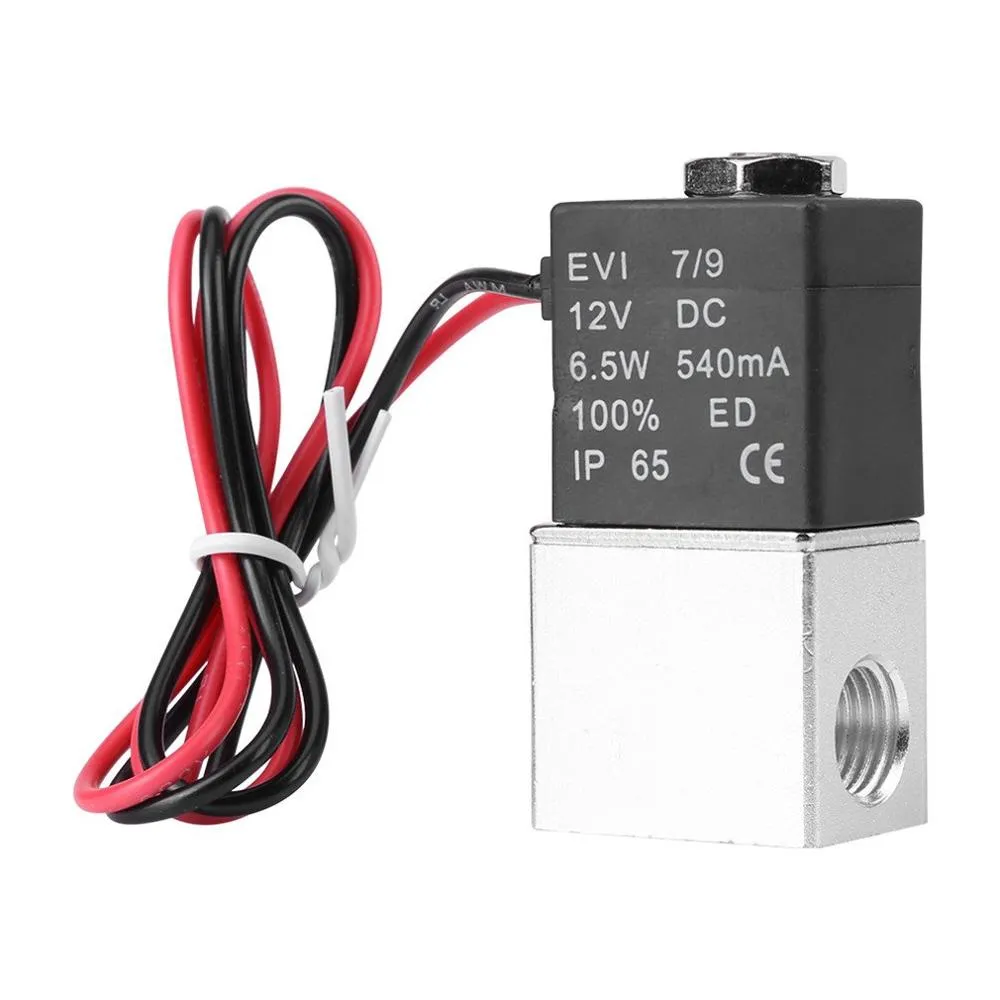

Constructed with a choice of high-quality Aluminum or Brass, the 2V series features an industrial-grade insulation treatment that prevents magnetic sticking and ensures consistent performance even in harsh environments. The IP65 protection rating ensures the valve remains impervious to moisture and dust, making it a reliable choice for food-grade machinery and precision industrial lines. Its silent operation and low power consumption make it a standout solution for laboratory and clinical equipment.

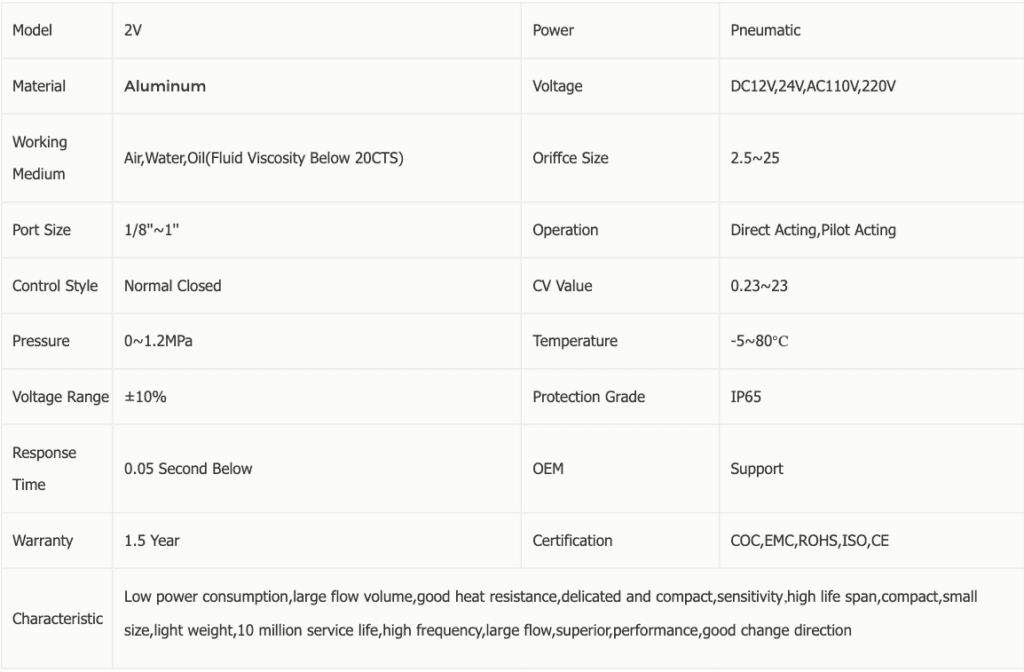

Technical Specifications

  • Body Material: Aluminum / Forged Brass

  • Operation: Direct Acting / Pilot operated (Normally Closed)

  • Orifice Size: 2.5mm – 25mm

  • Cv Value: 0.23 – 23

  • Pressure Range: 0 – 0.8 Mpa (0 – 116 Psi)

  • Working Temperature: -5°C to 80°C (23°F to 176°F)

  • Port Size: G 1/4″/1/2″/ 1″

  • Protection: IP65

  • Certification: CE, ROHS

Quick Selection Guide:

  • 2V025-08: G1/4″ Port | 2.5mm Orifice | Aluminum/Brass Body

  • 2V130-15: G1/2″ Port | 13mm Orifice | Pilot Operated High-Flow

  • 2V250-25: G1″ Port | 25mm Orifice | Pilot Operated High-Flow

Model

2V025-08, 2V130-15, 2V250-25
