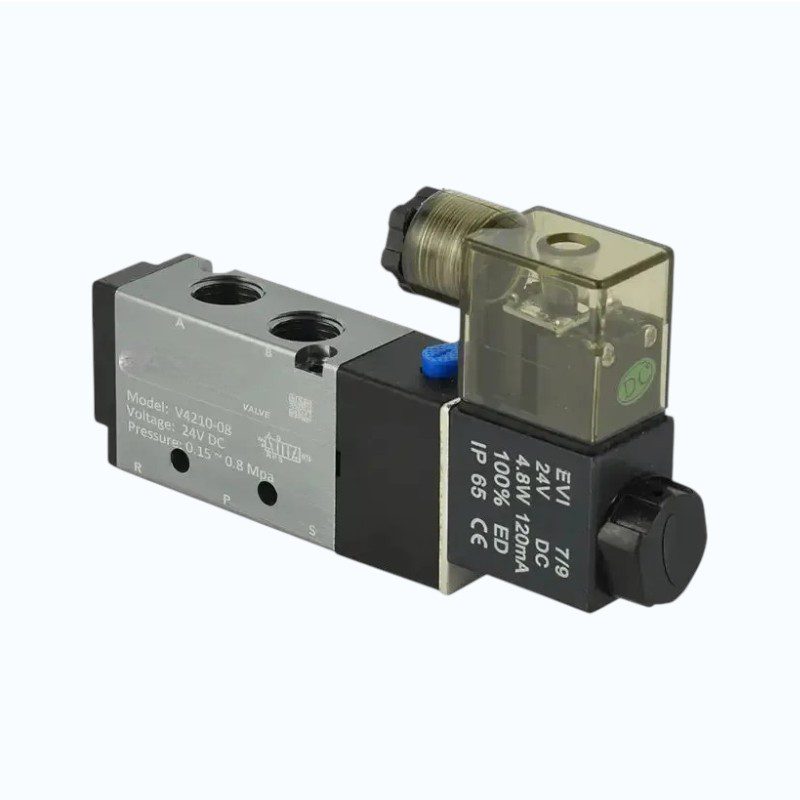

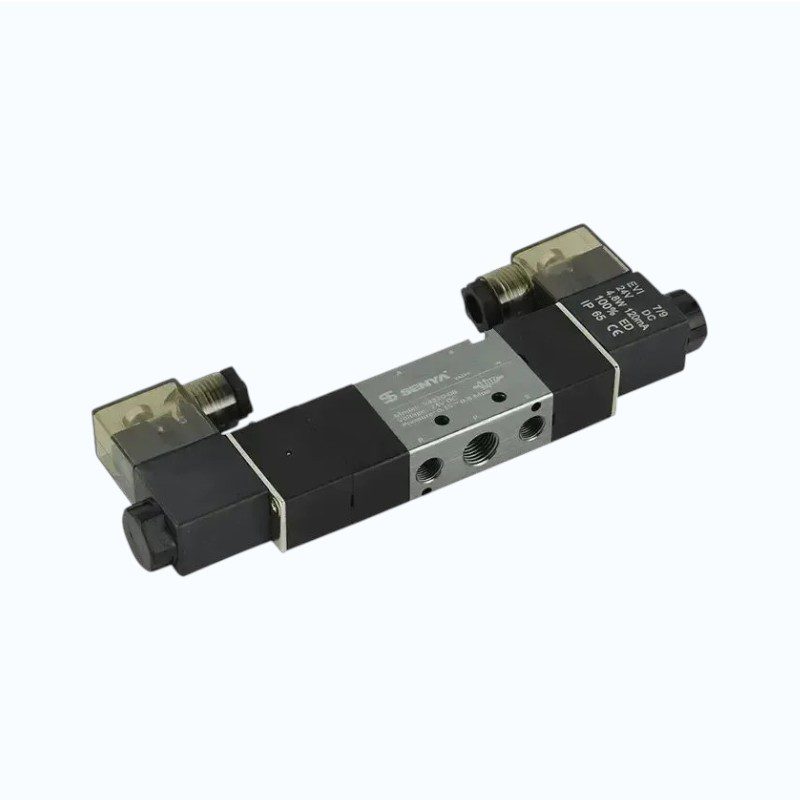

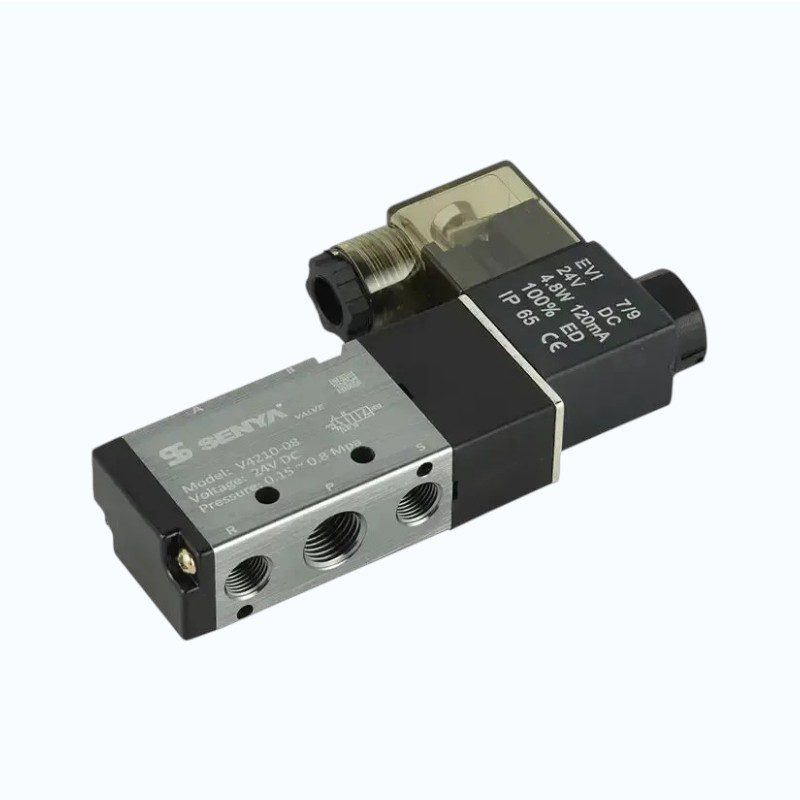

V4 Series 5/2 & 5/3 Way Directional Solenoid Valve – High-Speed Pneumatic Control

M5 to 1/2″ Port Size | 5-Port 2-Position or 3-Position | Internal/External Pilot | Single or Double Coil | Aluminum Alloy Body

  • Precision Engineered: Sliding column structure with hard-anodized internal bore (3-5 μm anti-wear coating) | Low friction and low starting pressure.

  • High-Speed Response: Fastest excitation time of 0.05 seconds | High acting frequency up to 5 cycles/second.

  • Oil-Free Operation: Self-lubricating design requires no additional oil | Maintenance-free longevity (up to 15 million cycles).

  • Versatile Configurations: Available in 5/2 Way (Single/Double control) and 5/3 Way (Closed, Exhaust, or Pressure centers).

  • Reliable Build: IP65 protection | Class F insulation | Robust Aluminum alloy body for demanding automated lines.

Commonly used as an alternative to:

  • Airtac 4V Series (4V110, 4V210, 4V310, 4V410)

  • SMC SY / VF Series

  • Mindman MVSC Series

Add to quote
SKU: SV-V4 Category:

 The V4 Series is the industrial standard for directional air control, offering a high-performance solution for pneumatic automation. These 5-way valves are designed to drive double-acting cylinders and pneumatic actuators with extreme precision. The internal spool is treated with a specialized anti-wear coating, ensuring sensitive reaction times and a service life that exceeds standard pneumatic valves.

Whether integrated into a manifold or used as a stand-alone unit, the V series provides exceptional flow rates (up to 2.79 Cv). The series offers flexible control options, including spring return, air return, and specialized 5/3-way centers for mid-stroke positioning and safety stops. Its rugged construction and IP65-rated DIN connectors make it suitable for everything from CNC machinery to packaging lines and textile equipment.

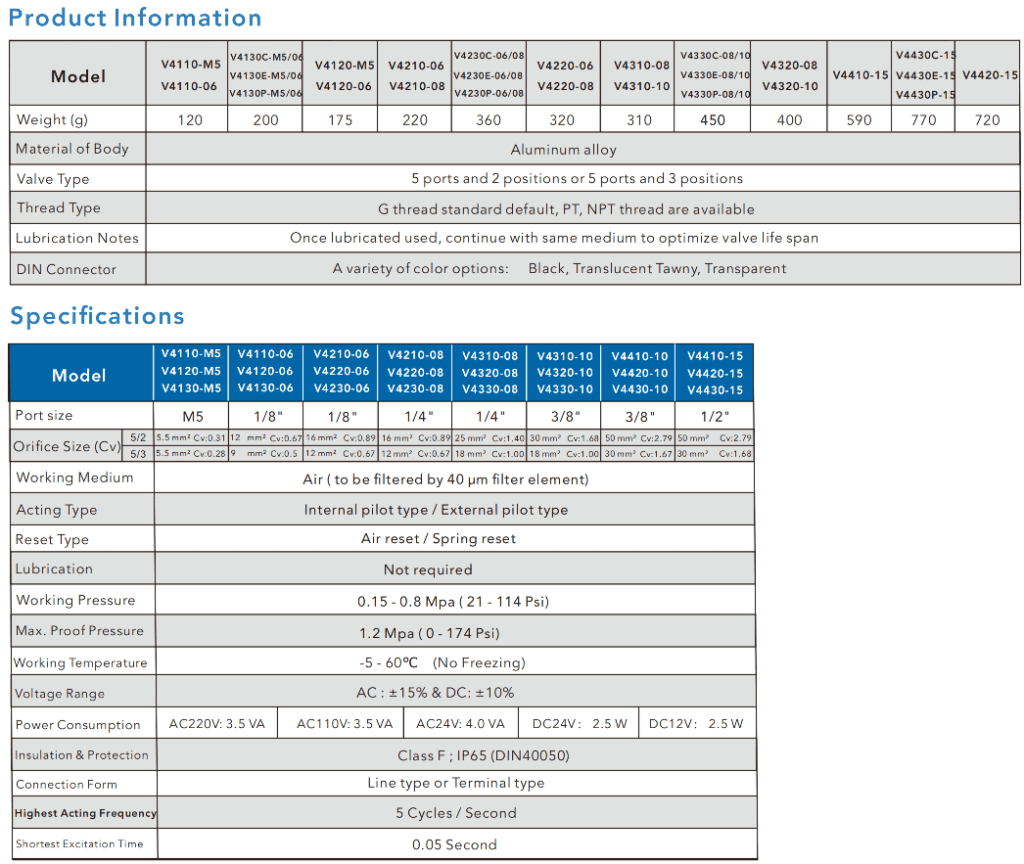

Technical Specifications

  • Working Medium: Clean air(40 μm)

  • Body Material: High-Strength Aluminum Alloy

  • Valve Type: 5 Port 2 Position / 5 Port 3 Position

  • Acting Type: Internal or External Pilot

  • Port Size Range: M5, 1/8″, 1/4″, 3/8″, 1/2″ (G / NPT / PT)

  • Pressure Range: 0.15 – 0.8 Mpa (21 – 114 Psi)

  • Working Temperature: -5°C to 60°C (23°F to 140°F)

  • Max. Proof Pressure: 1.2 Mpa (174 Psi)

  • Power Consumption: AC: 3.5VA – 4.0VA | DC: 2.5W

  • Protection/Insulation: IP65 (DIN40050)  | Class F

  • Certification: CE

Note: Valve body color can be customized.

Valve Type

(5/2) 5 Port 2 Position, (5/3) 5 Port 3 Position
Pipe Connection (NPT/G)

M5, 1/8″, 1/4″, 3/8″, 1/2″
