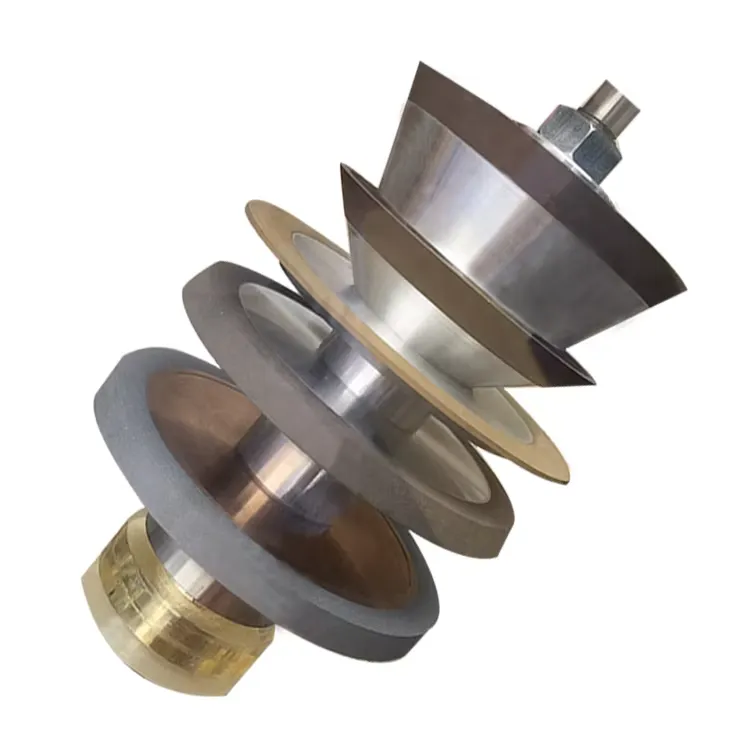

Diamond & CBN Grinding Wheels for 5-Axis CNC Tool Grinding Machines

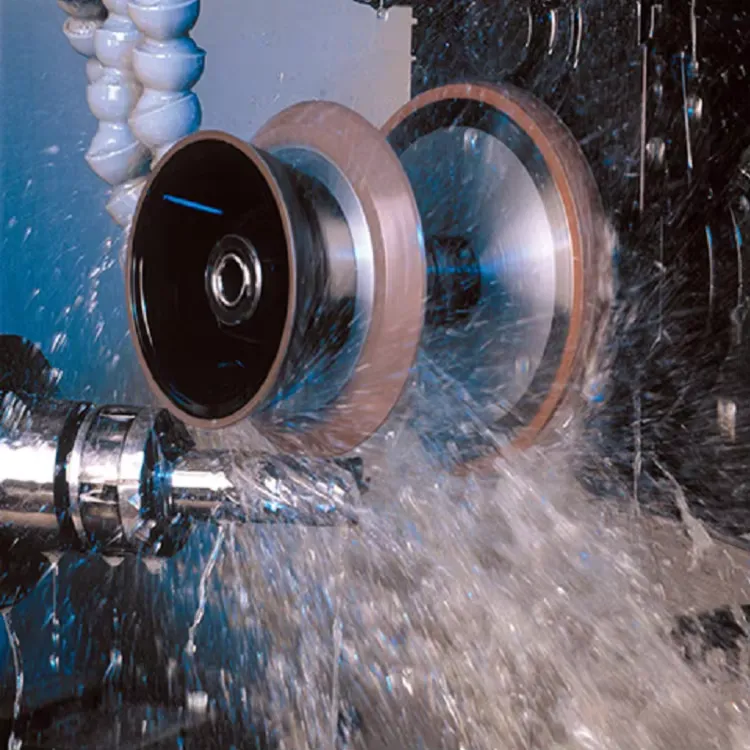

Diamond & CBN Grinding Wheels for 5-Axis CNC Tool Grinding Machines - Image 2

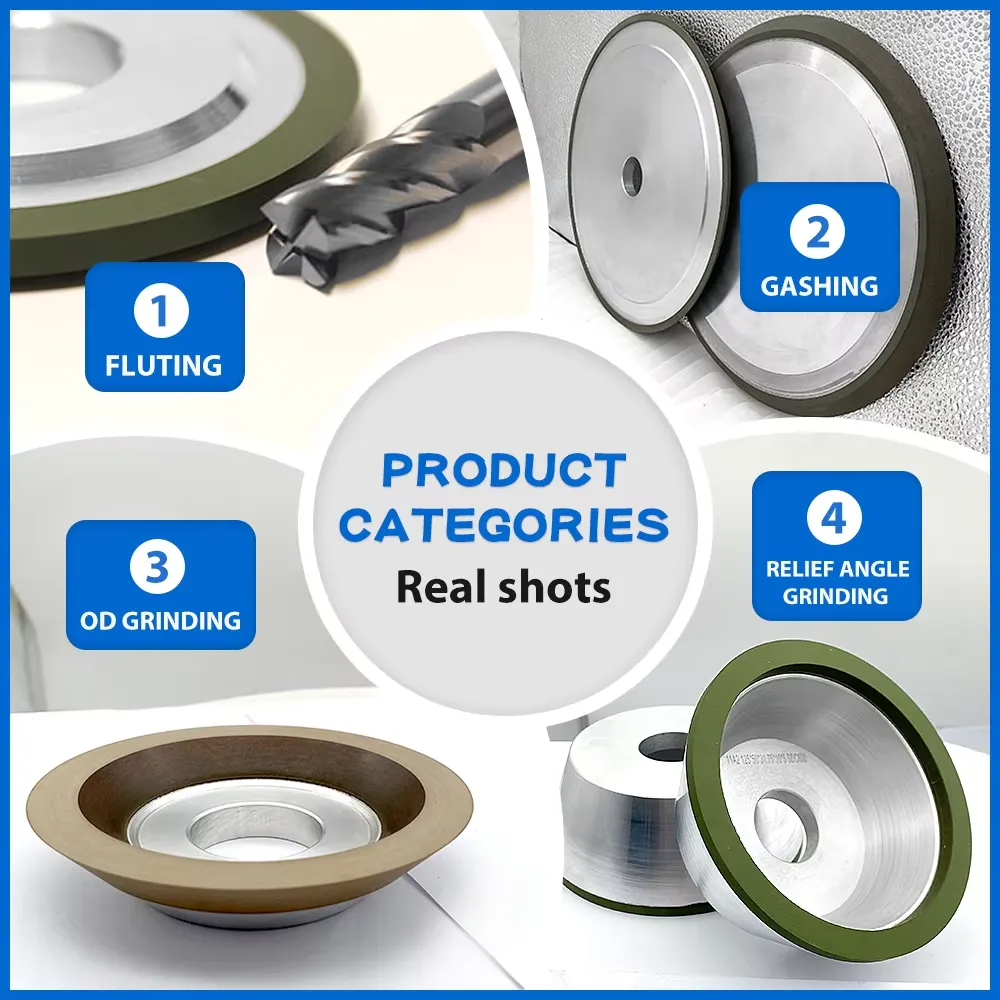

Diamond & CBN Grinding Wheels for 5-Axis CNC Tool Grinding Machines - Image 3
Diamond & CBN Grinding Wheels for 5-Axis CNC Tool Grinding Machines - Image 4
Resin Bond Diamond/CBN Grinding Wheels

Diamond & CBN Grinding Wheels for 5-Axis CNC Tool Grinding Machines

Resin bond and hybrid bond superabrasive grinding wheels for 5-axis CNC tool grinding machines.

Available in diamond and CBN abrasive, covering fluting, gashing, OD grinding, and relief & point grinding.

Compatible with ANCA, Walter, Rollomatic, Ewag, and other universal CNC cutter grinders.

Add to quote
SKU: GW-AX Categories: , , Tag:

Specifications

Model D — Outer Diameter X — Abrasive Layer Width T — Body Height H — Bore Diameter
1A1 50 / 75 / 100 / 125 / 150 mm/ Custom
(2″ / 3″ / 4″ / 5″ / 6″/ Custom)		 5 / 10 mm / Custom
(0.20″ / 0.39″ / Custom)		 6 / 10 / 12 / 15 / 20 mm / Custom
(0.24″ / 0.39″ / 0.47″ / 0.59″ / 0.79″ / Custom)		 20 / 31.75 / 32 mm / Custom
(0.79″ / 1.25″ / 1.26″ / Custom)
1V1 50 / 75 / 100 / 125 / 150 mm/ Custom
(2″ / 3″ / 4″ / 5″ / 6″/ Custom)		 6 / 10 / 12 / 15 / 20 mm / Custom
(0.24″ / 0.39″ / 0.47″ / 0.59″ / 0.79″ / Custom)
3A1 50 / 75 / 100 / 125 / 150 mm/ Custom
(2″ / 3″ / 4″ / 5″ / 6″/ Custom)		 6 / 10 / 12 / 15 / 20 mm / Custom
(0.24″ / 0.39″ / 0.47″ / 0.59″ / 0.79″ / Custom)
11V9 50 / 75 / 100 / 125 / 150 mm/ Custom
(2″ / 3″ / 4″ / 5″ / 6″/ Custom)		 18 / 20 / 25 mm / Custom
(0.71″ / 0.79″ / 0.98″ / Custom)
12V9 50 / 75 / 100 / 125 / 150 mm/ Custom
(2″ / 3″ / 4″ / 5″ / 6″/ Custom)		 18 / 20 / 25 mm / Custom
(0.71″ / 0.79″ / 0.98″ / Custom)
12V2 50 / 75 / 100 / 125 / 150 mm/ Custom
(2″ / 3″ / 4″ / 5″ / 6″/ Custom)		 23 mm / Custom
(0.91″ / Custom)
Abrasive Diamond (D) / CBN (B)
Bond Resin bond / Hybrid bond / Vitrified bond / Electroplated / Custom
Grit 40# – 600# / Custom
Concentration 75 / 100 / 125 / Custom
Hardness High

Applications

Operation Recommended Shapes Workpiece Materials

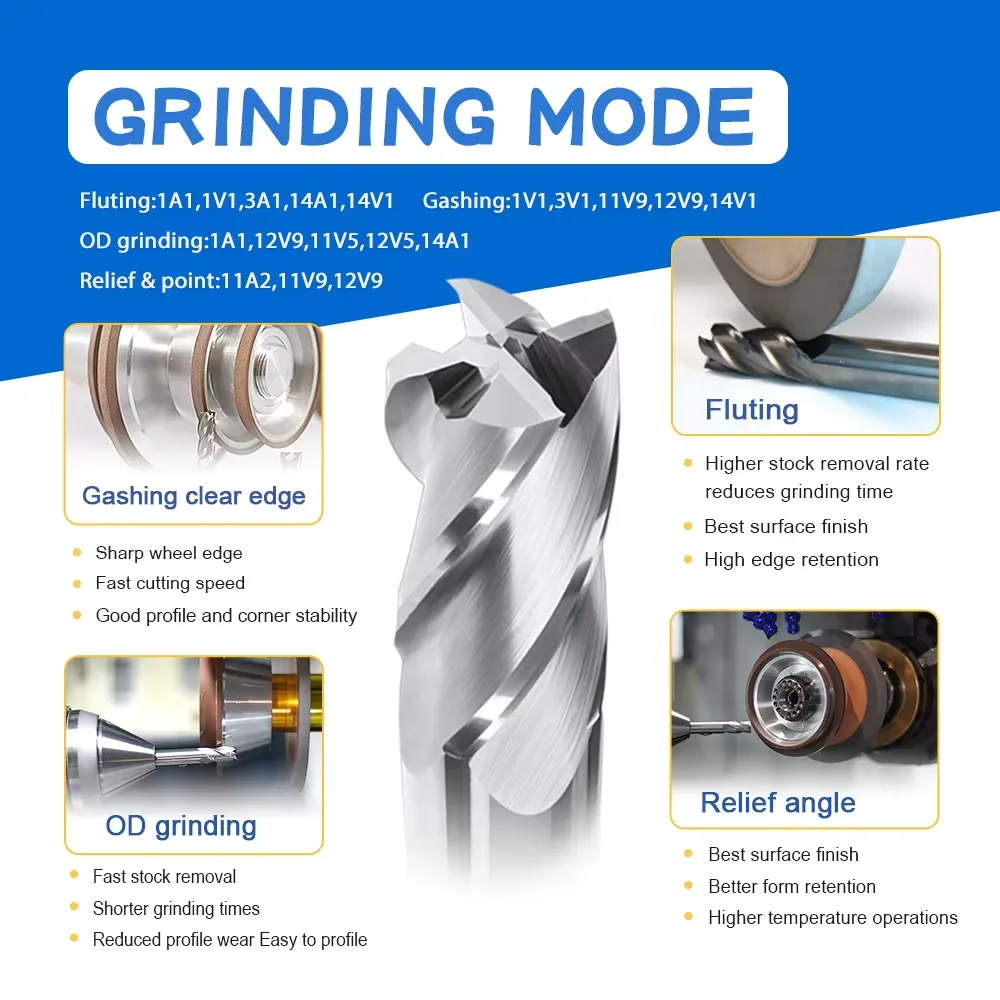

Fluting 1A1, 1V1, 3A1, 14A1, 14V1 Solid carbide, tool steel, HSS, tungsten carbide, PCD, PCBN
Gashing 1V1, 3V1, 11V9, 12V9, 14V1
OD Grinding 1A1, 12V9, 11V5, 12V5, 14A1
Relief & Point Grinding 11A2, 11V9,12V9

Suitable for grinding end mills, reamers, drill bits, step drills, and other rotary cutting tools on 5-axis CNC tool grinding machines including ANCA, Walter, Rollomatic, and Ewag platforms.

Ordering Information

Item Details
MOQ 1 pcs
Lead time 7-15 business days · Custom: quoted on request
Payment 100% T/T in advance · PayPal · Credit card
To inquire Please provide: shape, D × X × T × H (mm or inch), abrasive type, bond type, grit, concentration, and intended machine / application
wheel diameter

75mm (3"), 100mm (4"), 125mm (5"), 150mm (6"), 200mm (8"), Custom
abrasive

Diamond, Cubic Boron Nitride(CBN)
